101-00313-68-02

Obsolete

Amphenol ICC (Commercial Products)

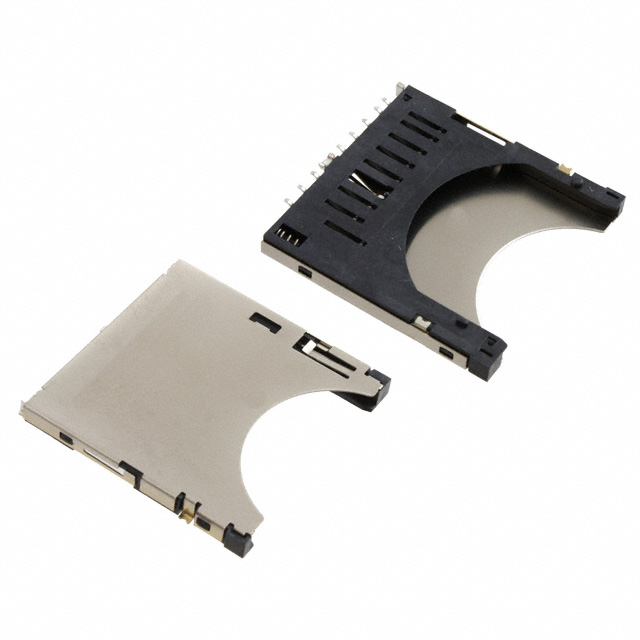

CONN SD CARD PUSH-PUSH R/A SMD

Search across all available documentation for this part.

Obsolete

Amphenol ICC (Commercial Products)

CONN SD CARD PUSH-PUSH R/A SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	101-00313-68-02	101-00313 Series

Card Type	Secure Digital - SD	Combo - MMC, SD, Secure Digital - SD
Connector Type	Connector and Ejector	Connector and Ejector
Contact Finish	Gold	Gold
Contact Finish Thickness	15 µin	15 µin
Contact Finish Thickness	0.38 µm	0.38 µm
Features	Board Guide	Switch, Board Guide
Height Above Board [z]	0.106 in	0.106 in
Height Above Board [z]	2.7 mm	2.7 mm
Insertion, Removal Method	Push Out, Push In	Push Out, Push In
Mounting Feature	Normal, Standard - Top	Normal, Standard - Top
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	9	9 - 11

CONN SD/MMC CARD PUSH-PUSH R/A

Part	Height Above Board [z]	Height Above Board [z]	Features	Contact Finish	Insertion, Removal Method	Mounting Feature	Contact Finish Thickness	Contact Finish Thickness	Card Type	Mounting Type	Number of Positions	Connector Type
Amphenol ICC (Commercial Products) 101-00313-68	0.106 in	2.7 mm	Board Guide, Switch	Gold	Push In, Push Out	Normal, Standard - Top	15 µin	0.38 µm	Combo - MMC, SD	Surface Mount, Right Angle	11	Connector and Ejector
Amphenol ICC (Commercial Products) 101-00313-68-02	0.106 in	2.7 mm	Board Guide	Gold	Push In, Push Out	Normal, Standard - Top	15 µin	0.38 µm	Secure Digital - SD	Surface Mount, Right Angle	9	Connector and Ejector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

9 Position Card Connector Secure Digital - SD Surface Mount, Right Angle Gold

Technical documentation and resources
