Specification	ABS8

Current - Average Rectified (Io)	800 mA
Current - Reverse Leakage	10 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C

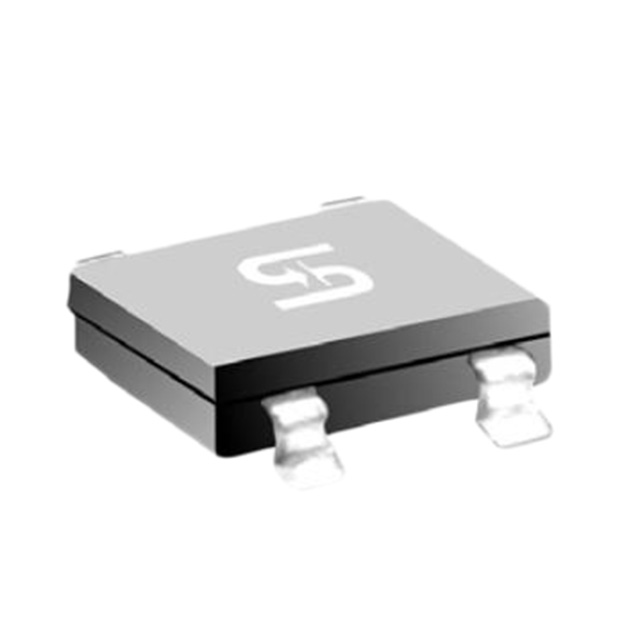

Package / Case	4-SMD, Gull Wing
Package Name	ABS
Technology	Standard
Voltage - Forward (Vf) (Max)	950 mV
Voltage - Peak Reverse (Max)	800 V

ABS8 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Grade	Package / Case	Diode Type	Current - Average Rectified (Io)	Qualification	Technology	Mounting Type	Package Name	Current - Reverse Leakage	Voltage - Forward (Vf) (Max)	Voltage - Peak Reverse (Max)
Taiwan Semiconductor Corporation ABS8H	-55 °C	150 °C	Automotive	4-SMD Gull Wing	Single Phase	800 mA	AEC-Q101	Standard	Surface Mount	ABS	10 µA	950 mV	800 V
Taiwan Semiconductor Corporation ABS8	-55 °C	150 °C		4-SMD Gull Wing	Single Phase	800 mA		Standard	Surface Mount	ABS	10 µA	950 mV	800 V
