MRB24H

Active

NKK Switches

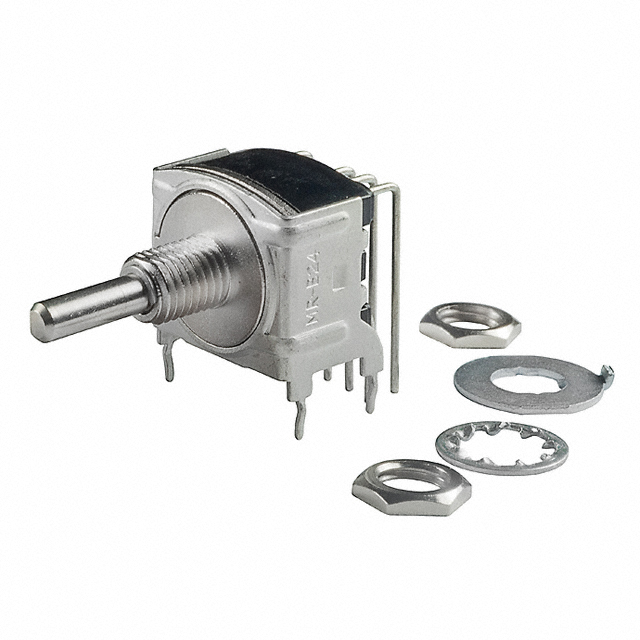

SWITCH ROTARY 3POS 0.4VA 28V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ROTARY 3POS 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	MRB24H

Actuator Length [x]	10 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Angle of Throw	45 °
Circuit per Deck	DP3T
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Timing	Non-Shorting
Current Rating (Amps)	0.4 VA
Depth Behind Panel [z]	15.1 mm
Features	Sealed - Fully
Index Stops	Fixed
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	2
Panel Cutout Dimensions [diameter]	0.25 in
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Contact Timing	Contact Finish	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Actuator Length [x]	Actuator Type	Angle of Throw	Features	Index Stops	Termination Style	Number of Poles per Deck	Mounting Type	Contact Material	Panel Cutout Dimensions [diameter]	Circuit per Deck	Number of Decks [custom]	Depth Behind Panel [z]	Actuator Type [diameter]
NKK Switches MRB24H-BC	Non-Shorting	Gold	0.4 VA	28 V	28 V	14.3 mm	Knob	45 °	Sealed - Fully	Fixed	PC Pin	2	Panel Mount Right Angle Through Hole	Beryllium Copper	0.25 in	DP3T	1	15.1 mm
NKK Switches MRB24H-BA-AT535	Non-Shorting	Gold	0.4 VA	28 V	28 V	14.3 mm	Knob	45 °	IP67 - Dust Tight Waterproof	Fixed	PC Pin	2	Panel Mount Right Angle Through Hole	Beryllium Copper	0.25 in	DP3T	1	15.1 mm
NKK Switches MRB24H-BA	Non-Shorting	Gold	0.4 VA	28 V	28 V	14.3 mm	Knob	45 °	Sealed - Fully	Fixed	PC Pin	2	Panel Mount Right Angle Through Hole	Beryllium Copper	0.25 in	DP3T	1	15.1 mm
NKK Switches MRB24H	Non-Shorting	Gold	0.4 VA	28 V	28 V	10 mm	Flatted	45 °	Sealed - Fully	Fixed	PC Pin	2	Panel Mount Right Angle Through Hole	Beryllium Copper	0.25 in	DP3T	1	15.1 mm	3.17 mm
NKK Switches MRB24H-A	Non-Shorting	Gold	0.4 VA	28 V	28 V	13 mm	Knob	45 °	Sealed - Fully	Fixed	PC Pin	2	Panel Mount Right Angle Through Hole	Beryllium Copper	0.25 in	DP3T	1	15.1 mm
NKK Switches MRB24H-BB	Non-Shorting	Gold	0.4 VA	28 V	28 V	14.3 mm	Knob	45 °	Sealed - Fully	Fixed	PC Pin	2	Panel Mount Right Angle Through Hole	Beryllium Copper	0.25 in	DP3T	1	15.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 3 Position DP3T 0.4VA (AC/DC) 28 VAC Panel Mount, Through Hole, Right Angle
