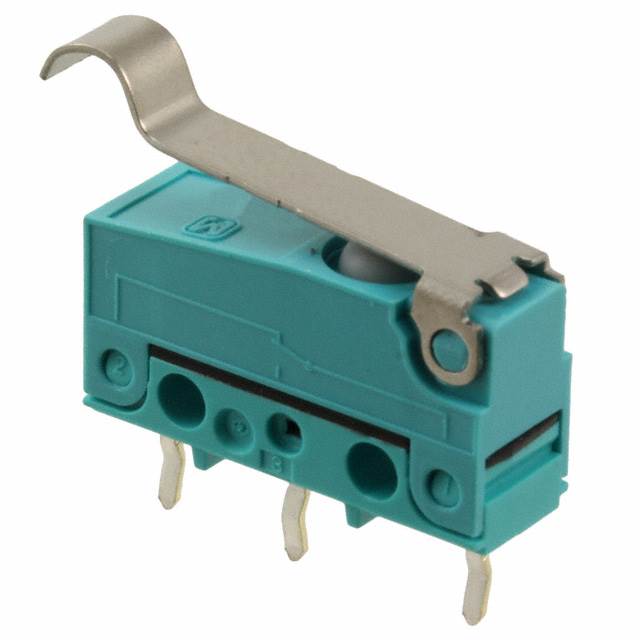

ABS1514513

Active

Panasonic Electric Works

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes

ABS1514513

Active

Panasonic Electric Works

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

DocumentsHow to Read Date Codes

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.61
		10	$ 2.41
		25	$ 2.26
		50	$ 2.21
		100	$ 1.77

Description

General part information

ABS151 Series

Switch SPDT Through Hole

Documents

Technical documentation and resources

How to Read Date Codes

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABS1514513	ABS151 Series

Actuator Type	Simulated Roller, Lever	Round (Pin Plunger), Lever, Straight, Simulated Roller, Lever
Circuit	SPDT	SPDT
Current Rating (Amps)	100 mA	2 - 100 A
Differential Travel	0.8 mm	0.1 - 1 mm
Differential Travel	0.031 "	0.004 - 0.04 in
Electrical Life	200000 Cycles	50000 - 200000 Cycles
Ingress Protection	IP50	IP50
Mechanical Life	5000000 Cycles	5000000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	55 gf	35 - 150 gf
Operating Position	11.7 mm	8.4 - 11.7 mm
Operating Position	0.46 in	0.33 - 0.46 in
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	1.2 mm	0.4 - 1.6 mm
Overtravel	0.047 "	0.015 - 0.062 "
Pretravel	0.11 in	0.024 - 0.138 in
Pretravel	2.8 mm	0.6 - 3.5 mm
Release Force	3.5 gf	3.059 - 20 gf
Switch Function	On-Mom	On-Mom
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	30 V	30 V

ABS151 Series

SWITCH SNAP ACTION SPDT 2A 125V

Part	Differential Travel	Differential Travel	Current Rating (Amps)	Ingress Protection	Mounting Type	Operating Position	Operating Position	Overtravel	Overtravel	Operating Force	Circuit	Termination Style	Mechanical Life	Voltage Rating - AC	Pretravel	Pretravel	Actuator Type	Release Force	Electrical Life	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function
Panasonic Electric Works ABS1510509	0.1 mm	0.004 in	2 A	IP50	Through Hole	8.4 mm	0.33 in	0.4 mm	0.015 "	150 gf	SPDT	PC Pin	5000000 Cycles	125 V	0.024 in	0.6 mm	Round (Pin Plunger)	20 gf	50000 Cycles	30 V	85 °C	-40 °C	On-Mom
Panasonic Electric Works ABS1510513	0.1 mm	0.004 in	100 mA	IP50	Through Hole	8.4 mm	0.33 in	0.4 mm	0.015 "	150 gf	SPDT	PC Pin	5000000 Cycles	125 V	0.024 in	0.6 mm	Round (Pin Plunger)	20 gf	200000 Cycles	30 V	85 °C	-40 °C	On-Mom
Panasonic Electric Works ABS1512513	0.8 mm	0.031 "	100 mA	IP50	Through Hole	8.8 mm	0.345 in	1.2 mm	0.047 "	55 gf	SPDT	PC Pin	5000000 Cycles	125 V	0.11 in	2.8 mm	Lever, Straight	3.5 gf	200000 Cycles	30 V	85 °C	-40 °C	On-Mom
Panasonic Electric Works ABS1514513	0.8 mm	0.031 "	100 mA	IP50	Through Hole	11.7 mm	0.46 in	1.2 mm	0.047 "	55 gf	SPDT	PC Pin	5000000 Cycles	125 V	0.11 in	2.8 mm	Lever, Simulated Roller	3.5 gf	200000 Cycles	30 V	85 °C	-40 °C	On-Mom
Panasonic Electric Works ABS1513519	1 mm	0.04 in	100 mA	IP50	Through Hole	8.8 mm	0.345 in	1.6 mm	0.062 in		SPDT	PC Pin	5000000 Cycles	125 V	0.138 in	3.5 mm	Lever, Straight	3.059 gf	200000 Cycles	30 V	85 °C	-40 °C	On-Mom
Panasonic Electric Works ABS1512503	0.8 mm	0.031 "	2 A	IP50	Through Hole	8.8 mm	0.345 in	1.2 mm	0.047 "	55 gf	SPDT	PC Pin	5000000 Cycles	125 V	0.11 in	2.8 mm	Lever, Straight	3.5 gf	50000 Cycles	30 V	85 °C	-40 °C	On-Mom
Panasonic Electric Works ABS1510519	0.1 mm	0.004 in	100 mA	IP50	Through Hole	8.4 mm	0.33 in	0.4 mm	0.015 "	150 gf	SPDT	PC Pin	5000000 Cycles	125 V	0.024 in	0.6 mm	Round (Pin Plunger)	20 gf	200000 Cycles	30 V	85 °C	-40 °C	On-Mom
Panasonic Electric Works ABS1512519	0.8 mm	0.031 "	100 mA	IP50	Through Hole	8.8 mm	0.345 in	1.2 mm	0.047 "	55 gf	SPDT	PC Pin	5000000 Cycles	125 V	0.11 in	2.8 mm	Lever, Straight	3.5 gf	200000 Cycles	30 V	85 °C	-40 °C	On-Mom
Panasonic Electric Works ABS1513503	1 mm	0.04 in	2 A	IP50	Through Hole	8.8 mm	0.345 in	1.6 mm	0.062 in		SPDT	PC Pin	5000000 Cycles	125 V	0.138 in	3.5 mm	Lever, Straight	3.059 gf	50000 Cycles	30 V	85 °C	-40 °C	On-Mom
Panasonic Electric Works ABS1514509	0.8 mm	0.031 "	2 A	IP50	Through Hole	11.7 mm	0.46 in	1.2 mm	0.047 "	55 gf	SPDT	PC Pin	5000000 Cycles	125 V	0.11 in	2.8 mm	Lever, Simulated Roller	3.5 gf	50000 Cycles	30 V	85 °C	-40 °C	On-Mom
