S9B-ZR-3.4

Active

JST Sales America Inc.

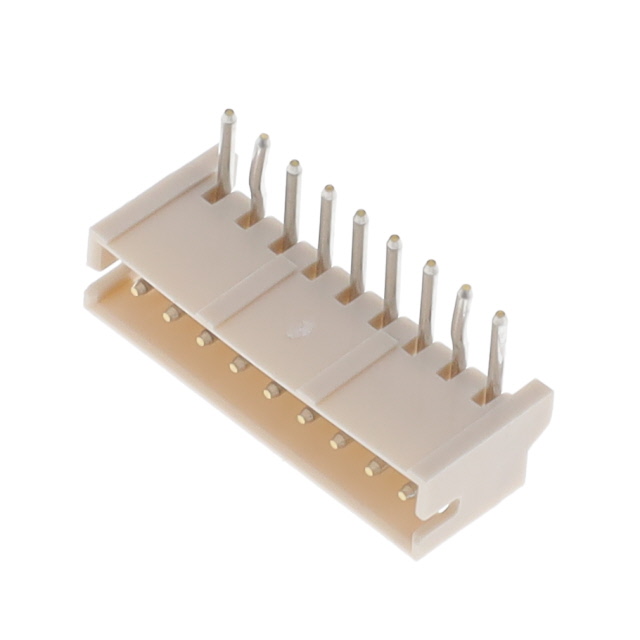

CONN HEADER R/A 9POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 9POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	S9B-ZR-3.4

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	3.7 mm
Insulation Height	0.146 "
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Number of Positions Loaded	Insulation Height	Insulation Height	Termination	Shrouding	Fastening Type	Insulation Material	Style	Voltage Rating	Connector Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Material Flammability Rating	Number of Positions	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Features	Contact Shape	Contact Type	Mounting Type	Contact Material	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]
JST Sales America Inc. S9B-ZR-SM2-TF	All	3.7 mm	0.146 "	Solder	Shrouded - 4 Wall	Detent Lock	Glass Filled Nylon 4/6 Polyamide (PA46)	Board to Cable/Wire	50 V	Header	Natural	-25 °C	85 °C	Tin	UL94 V-0	9	2.4 mm	0.094 in	Board Guide	Circular	Male Pin	Surface Mount Right Angle	Brass	1
JST Sales America Inc. S9B-ZR-3.4	All	3.7 mm	0.146 "	Solder	Shrouded - 4 Wall	Detent Lock	Polyamide (PA66) Nylon 6/6 Glass Filled	Board to Cable/Wire	50 V	Header	Natural	-25 °C	85 °C	Tin	UL94 V-0	9				Circular	Male Pin	Through Hole Right Angle	Brass	1	0.134 in	3.4 mm
JST Sales America Inc. S9B-ZR	All	3.7 mm	0.146 "	Solder	Shrouded - 4 Wall	Detent Lock	Polyamide (PA66) Nylon 6/6 Glass Filled	Board to Cable/Wire	50 V	Header	Natural	-25 °C	85 °C	Tin	UL94 V-0	9	2.4 mm	0.094 in		Circular	Male Pin	Through Hole Right Angle	Brass	1	0.106 in	2.69 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 9 position 0.059" (1.50mm)
