4516-1/4"X36YD

Active

3M (TC)

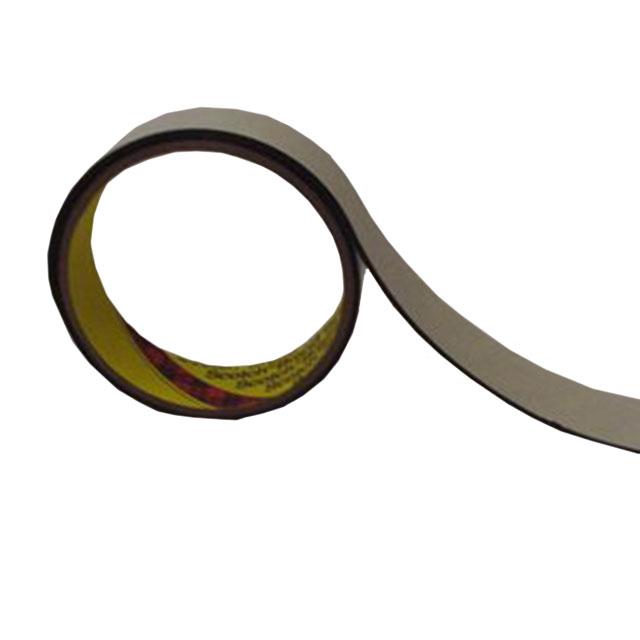

TAPE SINGLE COATED BLK 1/4"X36YD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Date Code Decipher

4516-1/4"X36YD

Active

3M (TC)

TAPE SINGLE COATED BLK 1/4"X36YD

Deep-Dive with AI

DocumentsDatasheet Date Code Decipher

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4516-1/4"X36YD

Adhesive	Acrylic, 430
Backing, Carrier	Vinyl
Color	Black
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Single Coated Foam
Thickness	0.063 "
Thickness	63 mils
Thickness	1.6 mm
Thickness	0.0625 "
Usage	Holding, Mounting, Joining
Width	0.25 in
Width	0.25 in
Width	6.35 mm

4516 Series

Part	Length	Length	Length	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life Start	Color	Adhesive	Thickness	Thickness	Thickness	Thickness	Usage	Backing, Carrier	Width [y]	Width [y]	Shelf Life	Tape Type	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Temperature Range	Temperature Range	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width [x]	Width [x]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Min]	Temperature Range [Max]	Width	Width	Width
3M (TC) 4516-2"X36YD	36 yd	32.9 m	108 ft	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Black	Acrylic 430	0.063 "	63 mils	1.6 mm	0.0625 "	Holding Joining Mounting	Vinyl	2 "	50.8 mm	24 Months	Single Coated Foam
3M (TC) 4516-1-5	5 yd	4.6 m	15 ft	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Black	Acrylic 430	0.0625 in	62.5 mils	1.588 mm		Holding Joining Mounting	Vinyl			24 Months	Single Coated Foam	0.003 in	3 mils	0.076 mm	66 °C	150 °F	59.5 mils	1.511 mm	0.0595 "	25.4 mm	1 in
3M (TC) 4516-2"X6"		152.4 mm	6 in	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Black	Acrylic 430	0.0625 in	62.5 mils	1.588 mm	0.0625 "	Sealing	Vinyl	2 "	50.8 mm	24 Months	Single Coated Foam											100 °F	10 °C	50 °F	38 °C
3M (TC) 4516-3/8"X36YD	36 yd	32.9 m	108 ft	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Black	Acrylic 430	0.063 "	63 mils	1.6 mm	0.0625 "	Holding Joining Mounting	Vinyl			24 Months	Single Coated Foam															0.375 in	9.65 mm	0.38 in
3M (TC) 4516-1"X36YD	36 yd	32.9 m	108 ft	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Black	Acrylic 430	0.063 "	63 mils	1.6 mm	0.0625 "	Holding Joining Mounting	Vinyl			24 Months	Single Coated Foam									25.4 mm	1 in
3M (TC) 4516-1/4"X36YD	36 yd	32.9 m	108 ft	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Black	Acrylic 430	0.063 "	63 mils	1.6 mm	0.0625 "	Holding Joining Mounting	Vinyl			24 Months	Single Coated Foam															0.25 in	6.35 mm	0.25 in
3M (TC) 4516-1/2"X36YD	36 yd	32.9 m	108 ft	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Black	Acrylic 430					Holding Joining Mounting	Vinyl			24 Months	Single Coated Foam															0.5 in	12.7 mm	0.5 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.78
		10	$ 43.24
		36	$ 40.69
		72	$ 38.15
		108	$ 35.61
		252	$ 33.83

Description

General part information

4516 Series

Single Coated Foam Tape Acrylic, 430 Adhesive Black 0.25" (6.35mm) 1/4" X 108' (32.9m) 36 yds
