MP-1919-2101-35-90

Luminus Devices Inc.

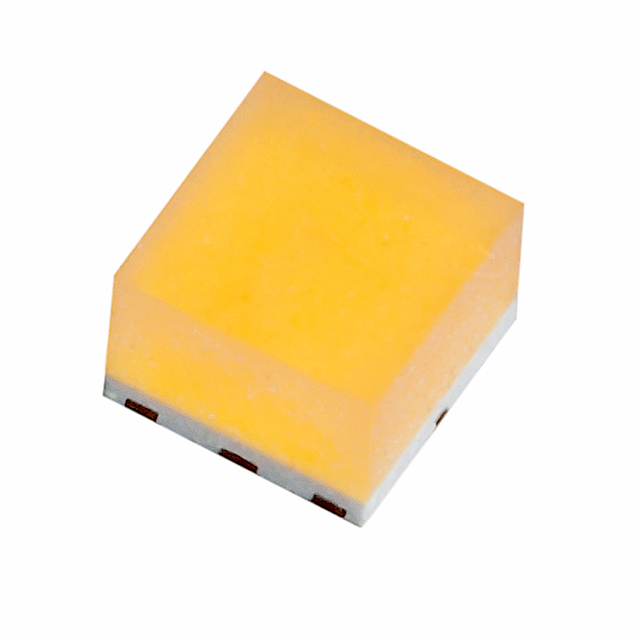

LED XNOVA CUBE WHT 3500K 1919

Search across all available documentation for this part.

Luminus Devices Inc.

LED XNOVA CUBE WHT 3500K 1919

Technical Specifications

Parameters and characteristics for this part

Specification	MP-1919-2101-35-90

CCT (K)	3500 K
Color	White, Warm
CRI (Color Rendering Index)	90
Current - Max [Max]	240 mA
Current - Test	150 mA
Flux @ 25°C, Current - Test	115 lm
Height - Seated (Max) [Max] [z]	0.049 "
Height - Seated (Max) [Max] [z]	1.25 mm
Mounting Type	Surface Mount
Package / Case	0707, 1919 Metric
Size / Dimension [x]	1.9 mm
Size / Dimension [x]	0.075 in
Size / Dimension [y]	1.9 mm
Size / Dimension [y]	0.075 in
Supplier Device Package	1919
Thermal Resistance of Package [custom]	8 °C/W
Viewing Angle	170 °
Voltage - Forward (Vf) (Typ)	6.2 V

Part	Color	Thermal Resistance of Package [custom]	Viewing Angle	CCT (K)	Current - Test	Mounting Type	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	CRI (Color Rendering Index)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Flux @ 25°C, Current - Test	Lumens/Watt @ Current - Test	Current - Max [Max]	Package / Case
Luminus Devices Inc. MP-1919-2100-50-80	Cool White	8 °C/W	170 °	5000 K	150 mA	Surface Mount	1919	6.2 V	1.9 mm	1.9 mm	0.075 in	0.075 in	80	0.049 "	1.25 mm	120 lm	129 lm/W	240 mA	0707 1919 Metric
Luminus Devices Inc. MP-1919-2101-27-90	Warm White	8 °C/W	170 °	2700 K	150 mA	Surface Mount	1919	6.2 V	1.9 mm	1.9 mm	0.075 in	0.075 in	90	0.049 "	1.25 mm	84 lm	90 lm/W	240 mA	0707 1919 Metric
Luminus Devices Inc. MP-1919-2101-40-80	Neutral White	8 °C/W	170 °	4000 K	150 mA	Surface Mount	1919	6.2 V	1.9 mm	1.9 mm	0.075 in	0.075 in	80	0.049 "	1.25 mm	133 lm	143 lm/W	240 mA	0707 1919 Metric
Luminus Devices Inc. MP-1919-2100-27-80	Warm White	8 °C/W	170 °	2700 K	150 mA	Surface Mount	1919	6.2 V	1.9 mm	1.9 mm	0.075 in	0.075 in	80	0.049 "	1.25 mm	108 lm	116 lm/W	240 mA	0707 1919 Metric
Luminus Devices Inc. MP-1919-2101-40-90	Neutral White	8 °C/W	170 °	4000 K	150 mA	Surface Mount	1919	6.2 V	1.9 mm	1.9 mm	0.075 in	0.075 in	90	0.049 "	1.25 mm	118 lm	127 lm/W	240 mA	0707 1919 Metric
Luminus Devices Inc. MP-1919-2101-35-90	Warm White	8 °C/W	170 °	3500 K	150 mA	Surface Mount	1919	6.2 V	1.9 mm	1.9 mm	0.075 in	0.075 in	90	0.049 "	1.25 mm	115 lm		240 mA	0707 1919 Metric

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Xnova™ Cube White, Warm 3500K 6.2V 150mA 170° 0707 (1919 Metric)
