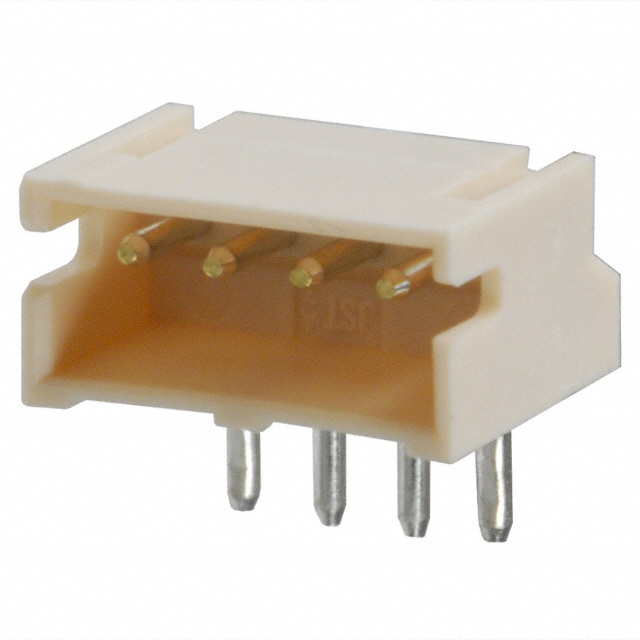

S4B-ZR

Active

JST Sales America Inc.

CONN HEADER R/A 4POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 4POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	S4B-ZR

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating [custom]	2.4 mm
Contact Length - Mating [custom]	0.094 in
Contact Length - Post [x]	0.106 in
Contact Length - Post [x]	2.69 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	3.7 mm
Insulation Height	0.146 "
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Mounting Type	Voltage Rating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Style	Contact Finish - Post	Insulation Height	Insulation Height	Material Flammability Rating	Insulation Material	Shrouding	Number of Positions Loaded	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Connector Type	Contact Shape	Insulation Color	Fastening Type	Contact Type	Number of Positions	Features	Contact Length - Mating [custom]	Contact Length - Mating [custom]
JST Sales America Inc. S4B-ZR-3.4	Through Hole Right Angle	50 V	1	-25 °C	85 °C	Board to Cable/Wire	Tin	3.7 mm	0.146 "	UL94 V-0	Polyamide (PA66) Nylon 6/6 Glass Filled	Shrouded - 4 Wall	All	Brass	0.134 in	3.4 mm	Solder	Header	Circular	Natural	Detent Lock	Male Pin	4
JST Sales America Inc. S4B-ZR-SM4A-TF	Surface Mount Right Angle	50 V	1	-25 °C	85 °C	Board to Cable/Wire	Tin	3.7 mm	0.146 "	UL94 V-0	Nylon 6T Polyamide (PA6T)	Shrouded - 4 Wall	All	Brass			Solder	Header	Circular	Natural	Detent Lock	Male Pin	4	Solder Retention
JST Sales America Inc. S4B-ZR	Through Hole Right Angle	50 V	1	-25 °C	85 °C	Board to Cable/Wire	Tin	3.7 mm	0.146 "	UL94 V-0	Polyamide (PA66) Nylon 6/6 Glass Filled	Shrouded - 4 Wall	All	Brass	0.106 in	2.69 mm	Solder	Header	Circular	Natural	Detent Lock	Male Pin	4		2.4 mm	0.094 in
JST Sales America Inc. S4B-ZR-SM2-TF	Surface Mount Right Angle	50 V	1	-25 °C	85 °C	Board to Cable/Wire	Tin	3.7 mm	0.146 "	UL94 V-0	Glass Filled Nylon 4/6 Polyamide (PA46)	Shrouded - 4 Wall	All	Brass			Solder	Header	Circular	Natural	Detent Lock	Male Pin	4	Board Guide	2.4 mm	0.094 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 4 position 0.059" (1.50mm)
