M55-7002042R

Active

Harwin Inc.

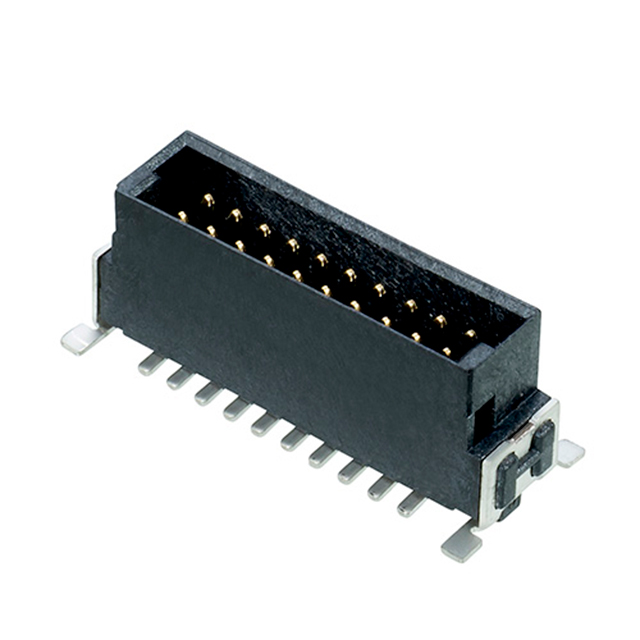

PIN HEADER, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 20 CONTACTS, SURFACE MOUNT, KONTROL M55 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM55-6001242R M55-6001242R +3

M55-7002042R

Active

Harwin Inc.

PIN HEADER, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 20 CONTACTS, SURFACE MOUNT, KONTROL M55 SERIES

Deep-Dive with AI

DocumentsM55-6001242R M55-6001242R +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M55-7002042R

Applications	Industrial, General Purpose, Automotive
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µin
Contact Finish Thickness - Mating	0.025 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating (Amps)	1.2 A
Fastening Type	Latch Lock
Features	Pick and Place, Board Guide, Solder Retention
Insulation Color	Black
Insulation Height	0.266 in
Insulation Height	6.76 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	15.4 mm, 10.8 mm, 8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

M55-700 Series

Part	Insulation Height	Insulation Height	Current Rating (Amps)	Mounting Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Termination	Contact Finish - Post	Contact Material	Contact Shape	Features	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Number of Positions	Pitch - Mating	Pitch - Mating	Applications	Shrouding	Contact Length - Mating	Contact Length - Mating	Connector Type	Number of Positions Loaded	Mated Stacking Heights	Number of Positions
Harwin Inc. M55-7005042R	0.266 in	6.76 mm	1.2 A	Surface Mount	Latch Lock	1 µin	0.025 µm	Black	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	0.05 in	1.27 mm	Gold	Solder	Tin	Phosphor Bronze	Rectangular	Board Guide Pick and Place Solder Retention	UL94 V-0	2.54 µm	100 µin	2	50	0.05 in	1.27 mm	Automotive General Purpose Industrial	Shrouded - 4 Wall	4 mm	0.157 in	Header	All	8 mm 10.8 mm 15.4 mm
Harwin Inc. M55-7008042R	0.266 in	6.76 mm	1.2 A	Surface Mount	Latch Lock	1 µin	0.025 µm	Black	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	0.05 in	1.27 mm	Gold	Solder	Tin	Phosphor Bronze	Rectangular	Board Guide Pick and Place Solder Retention	UL94 V-0	2.54 µm	100 µin	2	80	0.05 in	1.27 mm	Automotive General Purpose Industrial	Shrouded - 4 Wall	4 mm	0.157 in	Header	All	8 mm 10.8 mm 15.4 mm
Harwin Inc. M55-7001642R	0.266 in	6.76 mm	1.2 A	Surface Mount	Latch Lock	1 µin	0.025 µm	Black	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	0.05 in	1.27 mm	Gold	Solder	Tin	Phosphor Bronze	Rectangular	Board Guide Pick and Place Solder Retention	UL94 V-0	2.54 µm	100 µin	2		0.05 in	1.27 mm	Automotive General Purpose Industrial	Shrouded - 4 Wall	4 mm	0.157 in	Header	All	8 mm 10.8 mm 15.4 mm	16
Harwin Inc. M55-7002042R	0.266 in	6.76 mm	1.2 A	Surface Mount	Latch Lock	1 µin	0.025 µm	Black	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	0.05 in	1.27 mm	Gold	Solder	Tin	Phosphor Bronze	Rectangular	Board Guide Pick and Place Solder Retention	UL94 V-0	2.54 µm	100 µin	2	20	0.05 in	1.27 mm	Automotive General Purpose Industrial	Shrouded - 4 Wall	4 mm	0.157 in	Header	All	8 mm 10.8 mm 15.4 mm
Harwin Inc. M55-7002642R	0.266 in	6.76 mm	1.2 A	Surface Mount	Latch Lock	1 µin	0.025 µm	Black	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	0.05 in	1.27 mm	Gold	Solder	Tin	Phosphor Bronze	Rectangular	Board Guide Pick and Place Solder Retention	UL94 V-0	2.54 µm	100 µin	2	26	0.05 in	1.27 mm	Automotive General Purpose Industrial	Shrouded - 4 Wall	4 mm	0.157 in	Header	All	8 mm 10.8 mm 15.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.74
		10	$ 1.51
		100	$ 1.35
	Digi-Reel®	1	$ 1.74
		10	$ 1.51
		100	$ 1.35
	Tape & Reel (TR)	500	$ 1.13
		1000	$ 0.97
		1500	$ 0.93
		2500	$ 0.90
		5000	$ 0.86
Newark	Each (Supplied on Full Reel)	500	$ 1.18
		1000	$ 1.05

Description

General part information

M55-700 Series

Connector Header Surface Mount 20 position 0.050" (1.27mm)

Documents

Technical documentation and resources

M55-6001242R

Datasheet

M55-6001242R

Datasheet

M55-6001242R

Technical Data Sheet EN

Datasheet
