450-00121-K1

Active

Ezurio LLC

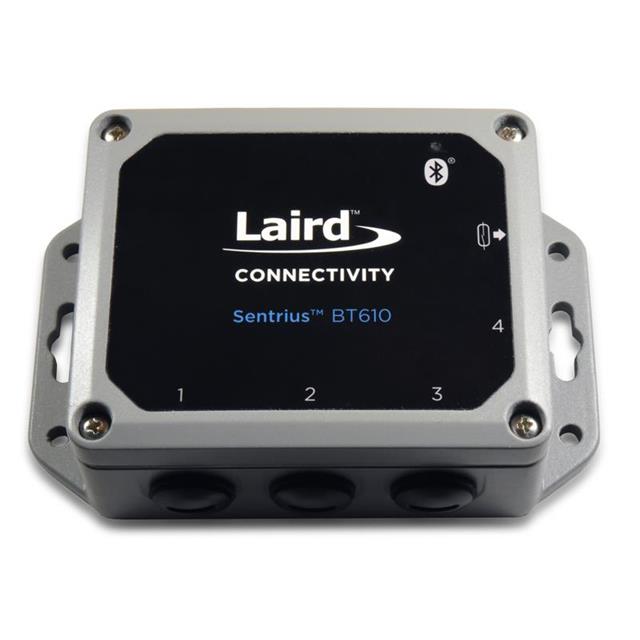

SENTRIUS BT610 I/O SENSOR

Search across all available documentation for this part.

Active

Ezurio LLC

SENTRIUS BT610 I/O SENSOR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Sensor Bluetooth v5.0 Analog, Digital, I2C, SPI, UART 1Mbps

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	450-00121-K1	450-0 Series

Applications	Bluetooth	General Purpose, IoT Finished Device, Bluetooth
Data Rate (Max)	1 Mbps	1 - 921.6 Mbps
Data Rate (Max)	-	54 Mbps
Features	IP67	IP67
Frequency	-	2.4 - 5.15 GHz
Frequency	-	2.495 - 5.825 GHz
Frequency	-	2.4 GHz
Function	Sensor	Sensor, Adapter, Gateway, Transceiver, Modem
Interface	UART, Digital, SPI, I2C, Analog	USB, RJ-45 Ethernet, UART, Digital, SPI, I2C, Analog, Serial
Modulation or Protocol	Bluetooth v5.0	Bluetooth v5.0, Bluetooth v5.2, 802.11 ac, 802.15.4 Zigbee™
Power - Output	-	18 - 20 dBm
Sensitivity	-	-98 - -95 dBm
Voltage - Supply	5 V, 3.3 V	3.3 - 5 V
Voltage - Supply	-	2 - 4.5 V
Voltage - Supply	-	3.3 - 5.5 V

SENTRIUS BT510 SENSOR W/ MAGNET

Part	Applications	Function	Modulation or Protocol	Features	Data Rate (Max) [Max]	Power - Output	Frequency [Min]	Frequency [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Interface	Sensitivity	Frequency	Data Rate (Max)	Voltage - Supply
Ezurio LLC 450-00048B	General Purpose, IoT Finished Device	Sensor	Bluetooth v5.0	IP67
Ezurio LLC 450-00137B	General Purpose	Adapter	802.11 ac, Bluetooth v5.2		54 Mbps	18 dBm	2.4 GHz, 5.15 GHz	2.495 GHz, 5.825 GHz	4.5 V	5.5 V	USB	-95 dBm
Ezurio LLC 450-0101		Gateway, Transceiver							4.5 V	5.5 V	RJ-45 Ethernet		2.4 GHz
Ezurio LLC 450-00121-K1	Bluetooth	Sensor	Bluetooth v5.0	IP67							Analog, Digital, I2C, SPI, UART			1 Mbps	3.3 V, 5 V
Ezurio LLC 450-0026	General Purpose	Modem, Transceiver	802.15.4 Zigbee™			20 dBm			2 V	3.3 V	Serial	-98 dBm	2.4 GHz	921.6 kbps
