LFWLT60-CK

Active

EOS Power

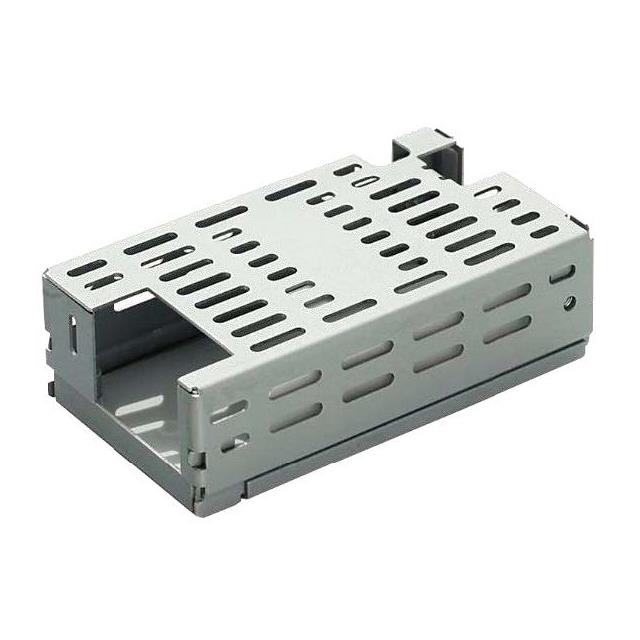

COVER KIT FOR WLT/MWLT40 &60

Deep-Dive with AI

Search across all available documentation for this part.

LFWLT60-CK

Active

EOS Power

COVER KIT FOR WLT/MWLT40 &60

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LFWLT60-CK	WLT60 Series

Accessory Type	Cover Assembly	Cover Assembly
Applications	-	ITE (Commercial)
Approval Agency	-	cUL, NEMKO, UL, CE
Current - Output 1	-	1.35 - 10 A
Current - Output 2	-	1.5 - 3 A
Current - Output 3	-	500 mA
Efficiency	-	85 %
Features	-	Adjustable Output, Universal Input
For Use With/Related Products	LFWLT60 Series	LFWLT60 Series
Minimum Load Required	-	False, True
Mounting Type	-	Chassis Mount
Number of Outputs	-	1 - 3
Operating Temperature	-	-20 °C
Operating Temperature	-	70 °C
Power (Watts)	-	52 - 86 W
Size / Dimension	-	28.5 mm
Size / Dimension	-	1.12 - 1.2 in
Size / Dimension	-	2 in
Size / Dimension	-	4 in
Size / Dimension	-	50.8 mm
Size / Dimension	-	101.6 mm
Size / Dimension	-	30.5 mm
Size / Dimension	-	50.8 mm
Type	-	Open Frame
Voltage - Input	-	90 VAC
Voltage - Input	-	264 VAC
Voltage - Isolation	-	4.242 kV
Voltage - Output 1	-	5.2 - 48 V
Voltage - Output 2	-	12.5 - 23.8 V
Voltage - Output 3	-	-16.2 - -12.5 V

WLT60 Series

COVER KIT FOR WLT/MWLT40 &60

Part	Accessory Type	For Use With/Related Products	Applications	Current - Output 1	Type	Power (Watts)	Mounting Type	Efficiency	Features	Voltage - Output 1	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 2	Current - Output 3	Voltage - Output 3	Current - Output 2
EOS Power LFWLT60-CK	Cover Assembly	LFWLT60 Series
EOS Power LFWLT60-1000			ITE (Commercial)	10 A	Open Frame	52 W	Chassis Mount	85 %	Adjustable Output, Universal Input	5.2 V	CE, cUL, NEMKO, UL	-20 °C	70 °C	90 VAC	264 VAC	28.5 mm	1.12 in	2 in	4 in	50.8 mm	101.6 mm	4.242 kV	1
EOS Power LFWLT60-1003			ITE (Commercial)	2.7 A	Open Frame		Chassis Mount	85 %	Adjustable Output, Universal Input	24 V	CE, cUL, NEMKO, UL	-20 °C	70 °C	90 VAC	264 VAC	28.5 mm	1.12 in	2 in	4 in	50.8 mm	101.6 mm	4.242 kV	1
EOS Power LFWLT60-3002			ITE (Commercial)	8 A	Open Frame	86 W	Chassis Mount	85 %	Adjustable Output, Universal Input	5.2 V	CE, cUL, NEMKO, UL	-20 °C	70 °C	90 VAC	264 VAC		1.2 "	2 in	4 in		101.6 mm	4.242 kV	3	30.5 mm	50.8 mm	14.6 V	500 mA	-16.2 V
EOS Power LFWLT60-1001			ITE (Commercial)		Open Frame		Chassis Mount	85 %	Adjustable Output, Universal Input	12 V	CE, cUL, NEMKO, UL	-20 °C	70 °C	90 VAC	264 VAC	28.5 mm	1.12 in	2 in	4 in	50.8 mm	101.6 mm	4.242 kV	1
EOS Power LFWLT60-1002			ITE (Commercial)	4.33 A	Open Frame		Chassis Mount	85 %	Adjustable Output, Universal Input	15 V	CE, cUL, NEMKO, UL	-20 °C	70 °C	90 VAC	264 VAC	28.5 mm	1.12 in	2 in	4 in	50.8 mm	101.6 mm	4.242 kV	1
EOS Power LFWLT60-3000			ITE (Commercial)	8 A	Open Frame	85 W	Chassis Mount	85 %	Adjustable Output, Universal Input	5.2 V	CE, cUL, NEMKO, UL	-20 °C	70 °C	90 VAC	264 VAC		1.2 "	2 in	4 in		101.6 mm	4.242 kV	3	30.5 mm	50.8 mm	12.5 V	500 mA	-12.5 V	3 A
EOS Power LFWLT60-3001			ITE (Commercial)	8 A	Open Frame	84 W	Chassis Mount	85 %	Adjustable Output, Universal Input	5.2 V	CE, cUL, NEMKO, UL	-20 °C	70 °C	90 VAC	264 VAC		1.2 "	2 in	4 in		101.6 mm	4.242 kV	3	30.5 mm	50.8 mm	23.8 V	500 mA	-12.5 V	1.5 A
EOS Power LFWLT60-1004			ITE (Commercial)	1.35 A	Open Frame		Chassis Mount	85 %	Adjustable Output, Universal Input	48 V	CE, cUL, NEMKO, UL	-20 °C	70 °C	90 VAC	264 VAC	28.5 mm	1.12 in	2 in	4 in	50.8 mm	101.6 mm	4.242 kV	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 26.86
		5	$ 26.41
		10	$ 25.65
		25	$ 23.77
		50	$ 23.39
		100	$ 22.63
		250	$ 21.13

Description

General part information

WLT60 Series

COVER KIT FOR WLT/MWLT40 &60

Documents

Technical documentation and resources

No documents available
