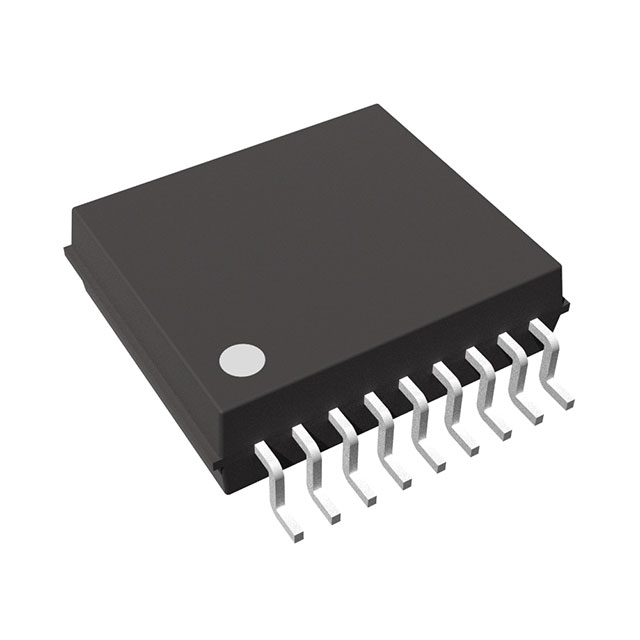

R1276S001A-E2-FE
ActiveNisshinbo Micro Devices Inc
SYNCHRONOUS STEP-DOWN DC/DC CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R1276S001A-E2-FE
ActiveNisshinbo Micro Devices Inc
SYNCHRONOUS STEP-DOWN DC/DC CONVERTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R1276S001A-E2-FE |
|---|---|
| Current - Output | 3 A |
| Frequency - Switching [Max] | 1 MHz |
| Frequency - Switching [Min] | 250 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 18-LFSOP, Exposed Pad |
| Package / Case [custom] | 4.4 mm |
| Package / Case [x] | 0.173 in |
| Supplier Device Package | 18-HSOP |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 30 V |
| Voltage - Input (Min) [Min] | 3.6 V |
| Voltage - Output (Min/Fixed) | 3.15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
R1276 Series
Buck Switching Regulator IC Positive Adjustable 3.15V 1 Output 3A 18-LFSOP (0.173", 4.40mm Width) Exposed Pad
