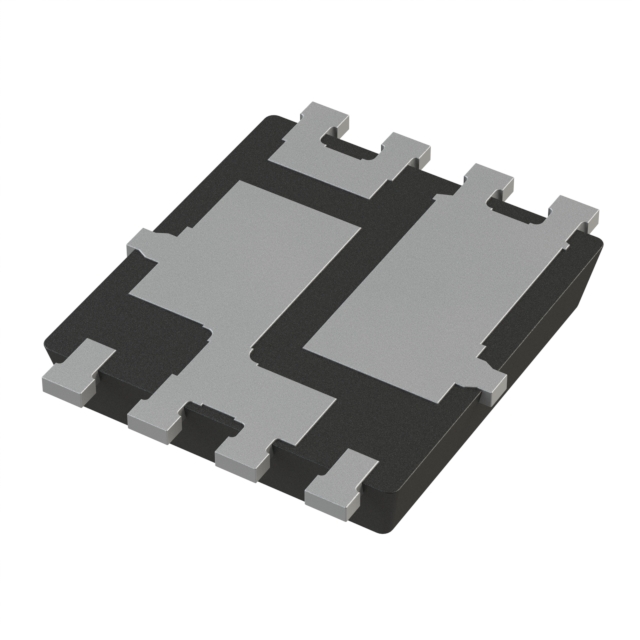

IAUC45N04S6N070HATMA1

Active

Infineon Technologies

INFINEON’S IAUC45N04S6N070H WITH OPTIMOS6 TECH, 3.0-7.0 MΩ RDS(ON), 60A CURRENT RATING, REDUCES PCB AREA FOR BRIDGE APPS. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

IAUC45N04S6N070HATMA1

Active

Infineon Technologies

INFINEON’S IAUC45N04S6N070H WITH OPTIMOS6 TECH, 3.0-7.0 MΩ RDS(ON), 60A CURRENT RATING, REDUCES PCB AREA FOR BRIDGE APPS. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IAUC45N04S6N070HATMA1

Configuration	2 N-Channel (Half Bridge)
Current - Continuous Drain (Id) @ 25°C	45 A
Drain to Source Voltage (Vdss)	40 V
Gate Charge (Qg) (Max) @ Vgs	12 nC
Grade	Automotive
Input Capacitance (Ciss) (Max) @ Vds	701 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerVDFN
Power - Max [Max]	41 W
Qualification	AEC-Q101
Rds On (Max) @ Id, Vgs	7 mOhm
Supplier Device Package	PG-TDSON-8-57
Technology	MOSFET (Metal Oxide)

IAUC45 Series

Part	Input Capacitance (Ciss) (Max) @ Vds	Grade	Qualification	FET Feature	Drain to Source Voltage (Vdss)	Supplier Device Package	Rds On (Max) @ Id, Vgs [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Configuration	Power - Max [Max]	Technology	Current - Continuous Drain (Id) @ 25°C	Mounting Type	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs
Infineon Technologies IAUC45N04S6L063HATMA1	775 pF	Automotive	AEC-Q101	Logic Level Gate	40 V	PG-TDSON-8-57	6.3 mOhm	-55 °C	175 ░C	8-PowerVDFN	2 N-Channel (Half Bridge)	41 W	MOSFET (Metal Oxide)	45 A	Surface Mount	13 nC
Infineon Technologies IAUC45N04S6N070HATMA1	701 pF	Automotive	AEC-Q101		40 V	PG-TDSON-8-57		-55 °C	175 ░C	8-PowerVDFN	2 N-Channel (Half Bridge)	41 W	MOSFET (Metal Oxide)	45 A	Surface Mount	12 nC	7 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.91
		10	$ 1.22
		100	$ 0.82
		500	$ 0.65
		1000	$ 0.60
		2000	$ 0.55
	Digi-Reel®	1	$ 1.91
		10	$ 1.22
		100	$ 0.82
		500	$ 0.65
		1000	$ 0.60
		2000	$ 0.55
	Tape & Reel (TR)	5000	$ 0.51
Newark	Each (Supplied on Cut Tape)	1	$ 1.54
		10	$ 1.05
		25	$ 0.95
		50	$ 0.85
		100	$ 0.75
		250	$ 0.67
		500	$ 0.59
		1000	$ 0.50

Description

General part information

IAUC45 Series

The dual SSO8 5x6 mm2package is perfectly suitable for single loads. For bridge applications the routing with a dual MOSFET is complicated and requires a large PCB area. Additionally, current rating in the dual SSO8 packages are limited to 20A. Using the integrated half-bridge, the PCB area is sizably reduced, as it provides enhanced routing for bridge applications. The newly designed half-bridge is based on the optimized OptiMOS™6 technology. The portfolio provides a wide RDS(ON) range from 3.0 mΩ to 7.0 mΩ and increased datasheet current rating of 60A.
