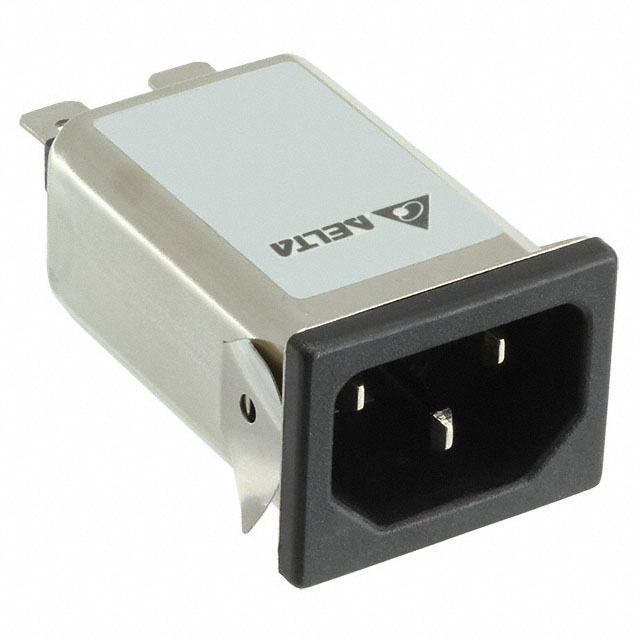

03GENG3EM-R(H)
ActiveDelta Electronics
PWR ENT RCPT IEC320-C14 PANEL QC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
03GENG3EM-R(H)
ActiveDelta Electronics
PWR ENT RCPT IEC320-C14 PANEL QC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 03GENG3EM-R(H) | 03GENG Series |
|---|---|---|
| Accomodates a Fuse | False | False |
| Approval Agency | UL, VDE, CSA | UL, VDE, CSA |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 3 A | 3 A |
| Current Rating - Filter | 3 A | 3 A |
| Features | Mounting Clip, Bleed Resistor | Mounting Clip, Bleed Resistor |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical | Filtered (EMI, RFI) - Commercial, Medical, Filtered (EMI, RFI) - Commercial |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 29.5 mm | 29.5 mm |
| Panel Cutout Dimensions [y] | 21.5 mm | 21.5 mm |
| Termination | Quick Connect | Quick Connect |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 115 VAC | 115 VAC |
03GENG Series
PWR ENT RCPT IEC320-C14 PANEL QC
| Part | Filter Type | Connector Style | Accomodates a Fuse | Features | Approval Agency | Mounting Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Termination | Connector Type | Current Rating - Appliance Inlet | Voltage Rating - Appliance Inlet [Min] | Voltage Rating - Appliance Inlet [Max] | Current Rating - Filter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics 03GENG3EM-R(H) | Filtered (EMI, RFI) - Commercial, Medical | IEC 320-C14 | Bleed Resistor, Mounting Clip | CSA, UL, VDE | Panel Mount, Snap-In | 29.5 mm | 21.5 mm | Quick Connect | Male Blades, Receptacle | 3 A | 115 VAC | 250 VAC | 3 A | |
Delta Electronics 03GENG3EM | Filtered (EMI, RFI) - Commercial, Medical | IEC 320-C14 | CSA, UL, VDE | Panel Mount, Snap-In | Quick Connect | Male Blades, Receptacle | 3 A | 115 VAC | 250 VAC | 3 A | ||||
Delta Electronics 03GENG3EM(H) | Filtered (EMI, RFI) - Commercial, Medical | IEC 320-C14 | Mounting Clip | CSA, UL, VDE | Panel Mount, Snap-In | 29.5 mm | 21.5 mm | Quick Connect | Male Blades, Receptacle | 3 A | 115 VAC | 250 VAC | 3 A | |
Delta Electronics 03GENG3EM-R | Filtered (EMI, RFI) - Commercial, Medical | IEC 320-C14 | Bleed Resistor | CSA, UL, VDE | Panel Mount, Snap-In | Quick Connect | Male Blades, Receptacle | 3 A | 115 VAC | 250 VAC | 3 A | |||
Delta Electronics 03GENG3E-R(H) | Filtered (EMI, RFI) - Commercial | IEC 320-C14 | Bleed Resistor, Mounting Clip | CSA, UL, VDE | Panel Mount, Snap-In | 29.5 mm | 21.5 mm | Quick Connect | Male Blades, Receptacle | 3 A | 115 VAC | 250 VAC | 3 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 210 | $ 7.15 | |
Description
General part information
03GENG Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
