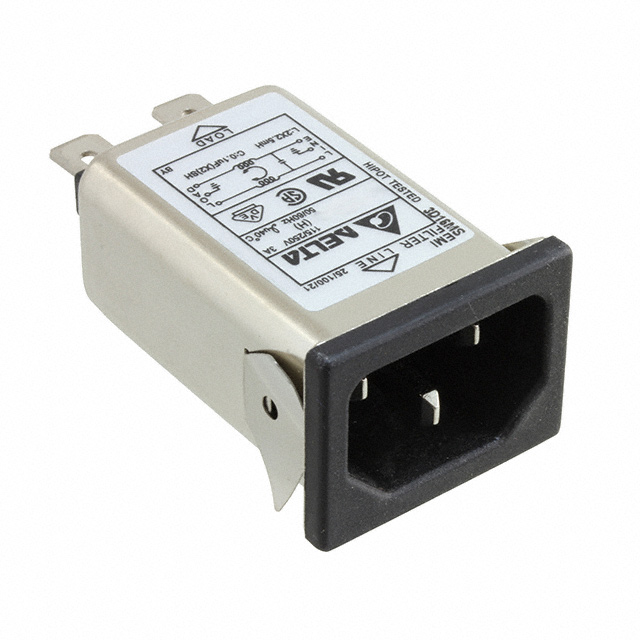

03GENG3EM(H)

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	210	$ 6.58

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	03GENG3EM(H)	03GENG Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	3 A	3 A
Current Rating - Filter	3 A	3 A
Features	Mounting Clip	Mounting Clip, Bleed Resistor
Filter Type	Filtered (EMI, RFI) - Commercial, Medical	Filtered (EMI, RFI) - Commercial, Medical, Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	29.5 mm	29.5 mm
Panel Cutout Dimensions [y]	21.5 mm	21.5 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Filter Type	Connector Style	Features	Approval Agency	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination	Connector Type	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Current Rating - Filter
Delta Electronics 03GENG3EM-R(H)	Filtered (EMI, RFI) - Commercial, Medical	IEC 320-C14	Bleed Resistor, Mounting Clip	CSA, UL, VDE	Panel Mount, Snap-In	29.5 mm	21.5 mm	Quick Connect	Male Blades, Receptacle	3 A	115 VAC	250 VAC	3 A
Delta Electronics 03GENG3EM	Filtered (EMI, RFI) - Commercial, Medical	IEC 320-C14		CSA, UL, VDE	Panel Mount, Snap-In			Quick Connect	Male Blades, Receptacle	3 A	115 VAC	250 VAC	3 A
Delta Electronics 03GENG3EM(H)	Filtered (EMI, RFI) - Commercial, Medical	IEC 320-C14	Mounting Clip	CSA, UL, VDE	Panel Mount, Snap-In	29.5 mm	21.5 mm	Quick Connect	Male Blades, Receptacle	3 A	115 VAC	250 VAC	3 A
Delta Electronics 03GENG3EM-R	Filtered (EMI, RFI) - Commercial, Medical	IEC 320-C14	Bleed Resistor	CSA, UL, VDE	Panel Mount, Snap-In			Quick Connect	Male Blades, Receptacle	3 A	115 VAC	250 VAC	3 A
Delta Electronics 03GENG3E-R(H)	Filtered (EMI, RFI) - Commercial	IEC 320-C14	Bleed Resistor, Mounting Clip	CSA, UL, VDE	Panel Mount, Snap-In	29.5 mm	21.5 mm	Quick Connect	Male Blades, Receptacle	3 A	115 VAC	250 VAC	3 A
