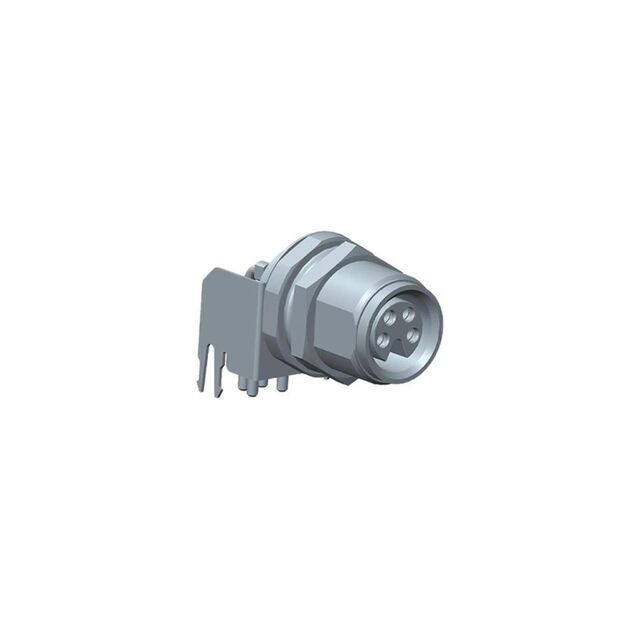

M8AS-05PFFR-SF8001

Active

Amphenol LTW

SENSOR CONN, M8, R/A RCPT, 5P, PANEL/PCB ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

SENSOR CONN, M8, R/A RCPT, 5P, PANEL/PCB ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M8AS-05PFFR-SF8001

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Features	Ground, Board Lock
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Metal
Shell Size - Insert	M8-5
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Primary Material	Mounting Feature	Contact Material	Orientation	Termination	Current Rating (Amps)	Insert Material	Ingress Protection	Shell Finish	Connector Type	Shell Size - Insert	Features	Voltage Rating	Shielding	Color	Mounting Type	Contact Finish - Mating
Amphenol LTW M8AS-05PFFR-SF8001	85 °C	-20 C	Metal	Metal	Bulkhead - Front Side Nut	Copper Alloy	A	Solder	1.5 A	Polyamide (PA) Nylon Glass Filled	IP68 - Dust Tight Waterproof	Nickel	Female Sockets Plug	M8-5	Board Lock Ground	30 VDC	Shielded	Silver	Panel Mount Right Angle Through Hole	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Solder
