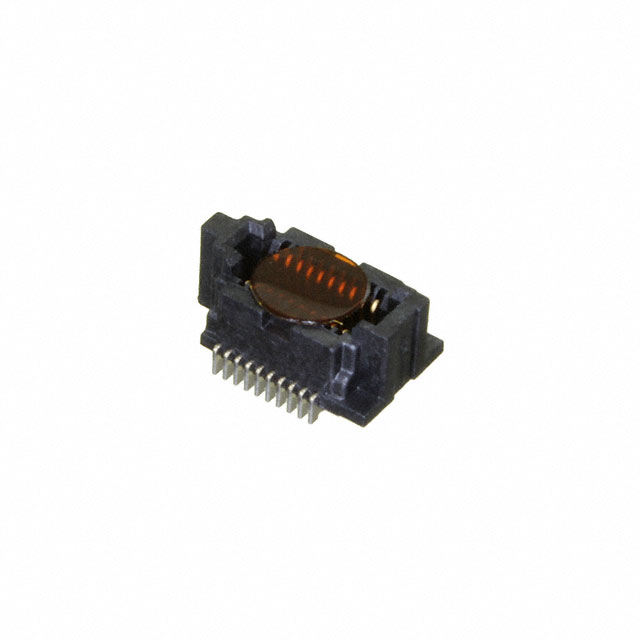

SS4-10-3.00-L-D-K-TR

Active

Samtec Inc.

CONN SOCKET 20POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	SS4-10-3.00-L-D-K-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place
Height Above Board	2.85 mm
Height Above Board	0.112 in
Mated Stacking Heights	4.5 mm, 4 mm, 5.5 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Height Above Board	Height Above Board	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Finish	Features	Number of Rows	Mated Stacking Heights	Connector Type	Mounting Type
Samtec Inc. SS4-10-3.50-L-D-K-TR	3.35 mm	0.132 in	20	10 Áin	0.25 Ám	0.016 in	0.4 mm	Gold	Pick and Place	2	4.5 mm 5.5 mm 6 mm	Outer Shroud Contacts Socket	Surface Mount
Samtec Inc. SS4-10-3.00-L-D-L-K-TR	2.85 mm	0.112 in	20	10 Áin	0.25 Ám	0.016 in	0.4 mm	Gold	Pick and Place	2	4 mm 4.5 mm 5.5 mm	Outer Shroud Contacts Socket	Surface Mount
Samtec Inc. SS4-10-3.00-L-D-K-TR	2.85 mm	0.112 in	20	10 Áin	0.25 Ám	0.016 in	0.4 mm	Gold	Pick and Place	2	4 mm 4.5 mm 5.5 mm	Outer Shroud Contacts Socket	Surface Mount
