6792112331F

Active

DIALIGHT

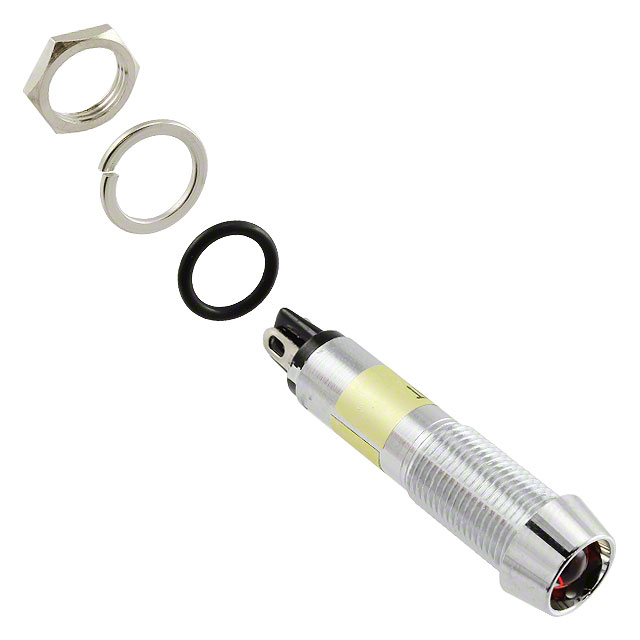

9MM HR/R PMI-12VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

9MM HR/R PMI-12VDC W/O-RING

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6792112331F	6792112 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Red	Red
Millicandela Rating	775 mcd	775 - 2100 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.35 mm
Panel Cutout Dimensions [custom]	0.37 in	0.37 in
Panel Cutout Dimensions [custom]	9.4 mm	9.4 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Viewing Angle	-	30 °
Voltage	12 V	6 - 12 V
Wavelength - Peak	-	624 nm

LED PANEL INDCATOR RED 6V

Part	Ingress Protection	Lamp Color	Viewing Angle	Current	Voltage	Ratings	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Panel Cutout Shape	Type	Termination Style	Millicandela Rating	Wavelength - Peak	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]
DIALIGHT 6792112321F	IP66, NEMA 4X	Red	30 °	30 mA	6 V	DC	0.37 in	9.35 mm	Round	LED	Solder Lug	2100 mcd	624 nm
DIALIGHT 6792112331F	IP66, NEMA 4X	Red		30 mA	12 V	DC			Round	LED	Solder Lug	775 mcd		0.37 in	9.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red 12V 30mA Solder Lug
