TE Connectivity Raychem Cable Protection

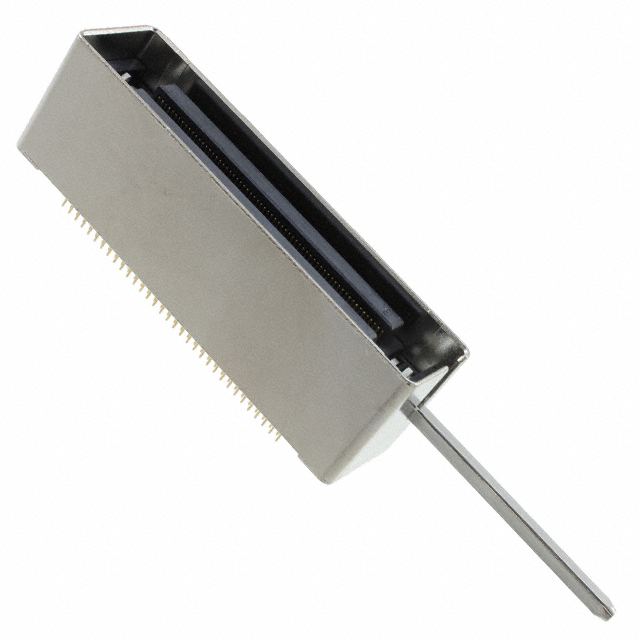

TC-ZIF REC ASSY 260P

Search across all available documentation for this part.

Unknown

TE Connectivity Raychem Cable Protection

TC-ZIF REC ASSY 260P

Technical Specifications

Parameters and characteristics for this part

Specification	6565204-1

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.025 µm
Contact Finish Thickness	1 µin
Features	Actuating Camshaft
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	260
Number of Positions Loaded	All
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Termination	Solder

Part	Number of Positions	Material Flammability Rating	Pitch [x]	Pitch [x]	Number of Positions Loaded	Mounting Type	Termination	Color	Contact Finish	Voltage Rating	Current Rating (Amps)	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity Raychem Cable Protection 6674720-1	260	UL94 V-0	0.8 mm	0.031 in	All	Through Hole	Solder	Black Natural	Gold	100 V	0.5 A	Receptacle Female Sockets	85 °C	-55 °C
TE Connectivity Raychem Cable Protection 6565199-1	260	UL94 V-0	0.8 mm	0.031 in	All	Board Edge Straddle Mount	Solder	Black Natural	Gold	100 V	0.5 A	Header	85 °C	-50 °C
TE Connectivity Raychem Cable Protection 6565199-3	260	UL94 V-0	0.8 mm	0.031 in	All	Board Edge Straddle Mount	Solder	Black Natural	Gold	100 V	0.5 A	Header Male Pins	85 °C	-55 °C
TE Connectivity Raychem Cable Protection 6565204-1	260	UL94 V-0	0.8 mm	0.031 in	All	Through Hole	Solder		Gold			Receptacle Female Sockets	85 °C	-55 °C	Actuating Camshaft	0.025 µm	1 µin
TE Connectivity Raychem Cable Protection 6674720-3	260	UL94 V-0	0.8 mm	0.031 in	All	Through Hole	Solder	Black Natural	Gold	100 V	0.5 A	Receptacle Female Sockets	85 °C	-55 °C
TE Connectivity Raychem Cable Protection 6565204-6	260	UL94 V-0	0.8 mm	0.031 in	All	Through Hole	Solder	Black	Gold			Receptacle Female Sockets	85 °C	-55 °C	Actuating Camshaft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Vertical, Wire-to-Board, 260 Position, .8 mm [.031 in] Centerline, Gold (Au), Through Hole - Solder, Signal, Black / Natural, Tray, AMP TC-ZIF
