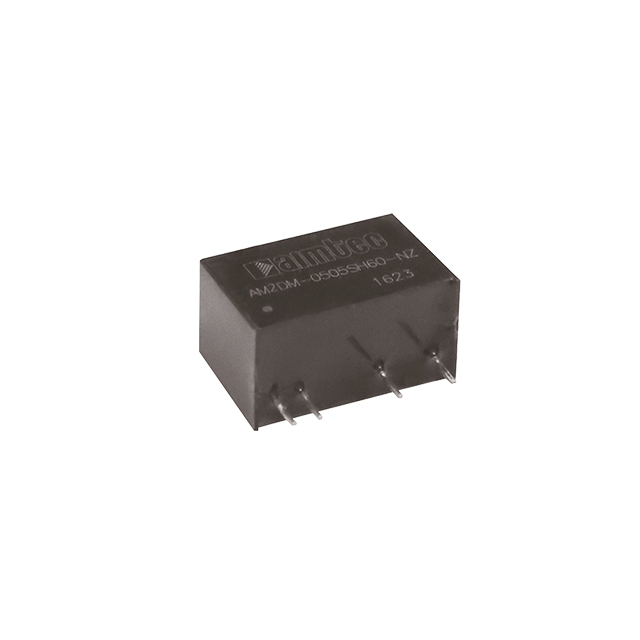

AM2DM-2415SH60-NZ

Active

aimtec

DC DC CONVERTER 15V 2W

Search across all available documentation for this part.

Active

aimtec

DC DC CONVERTER 15V 2W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AM2DM-2415SH60-NZ	AM2DM Series

Applications	Medical	Medical
Approval Agency	CE, cURus	CE, cURus
Current - Output (Max)	-	111 mA
Current - Output (Max)	-	67 mA
Current - Output (Max)	-	67 mA
Current - Output (Max) [Max]	133 mA	111 - 400 mA
Efficiency	84 %	77 - 84 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-SIP Module, 4 Leads	7-SIP Module, 4 Leads, 7-SIP Module, 5 Leads
Power (Watts)	2 W	2 W
Size / Dimension	-	0.39 "
Size / Dimension	-	9.8 mm
Size / Dimension	-	0.51 in
Size / Dimension	-	0.77 in
Size / Dimension	-	19.5 mm
Size / Dimension	-	13 mm
Supplier Device Package	7-SIP	7-SIP
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	26.4 V	5.5 - 26.4 V
Voltage - Input (Min) [Min]	21.6 V	4.5 - 21.6 V
Voltage - Isolation	6000 V	6000 V
Voltage - Output 1	15 V	5 - 15 V
Voltage - Output 2	-	-15 - -9 V

DC DC CONVERTER 15V 2W

Part	Approval Agency	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Power (Watts)	Efficiency	Number of Outputs	Voltage - Isolation	Type	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Package / Case	Applications	Voltage - Output 1	Current - Output (Max) [Min]	Voltage - Output 2	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max)	Current - Output (Max)
aimtec AM2DM-2415SH60-NZ	CE, cURus	133 mA	26.4 V	2 W	84 %	1	6000 V	Isolated Module	21.6 V	85 °C	-40 °C	Through Hole	7-SIP	7-SIP Module, 4 Leads	Medical	15 V
aimtec AM2DM-1212SH60-NZ	CE, cURus	167 mA	13.2 V	2 W	80 %	1	6000 V	Isolated Module	10.8 V	85 °C	-40 °C	Through Hole			Medical	12 V
aimtec AM2DM-2409DH60-NZ	CE, cURus	111 mA	26.4 V	2 W	81 %	2	6000 V	Isolated Module	21.6 V	85 °C	-40 °C	Through Hole		7-SIP Module, 5 Leads	Medical		111 mA	-9 V	0.39 "	9.8 mm	0.51 in	0.77 in	19.5 mm	13 mm
aimtec AM2DM-0505SH60-NZ	CE, cURus	400 mA	5.5 V	2 W	77 %	1	6000 V	Isolated Module	4.5 V	85 °C	-40 °C	Through Hole		7-SIP Module, 4 Leads	Medical	5 V			0.39 "	9.8 mm	0.51 in	0.77 in	19.5 mm	13 mm
aimtec AM2DM-2415DH60-NZ	CE, cURus		26.4 V	2 W	81 %	2	6000 V	Isolated Module	21.6 V	85 °C	-40 °C	Through Hole	7-SIP	7-SIP Module, 5 Leads	Medical	15 V		-15 V							67 mA	67 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 15V 133mA 21.6V - 26.4V Input
