6-1355683-3

Active

TE Connectivity AMP Connectors

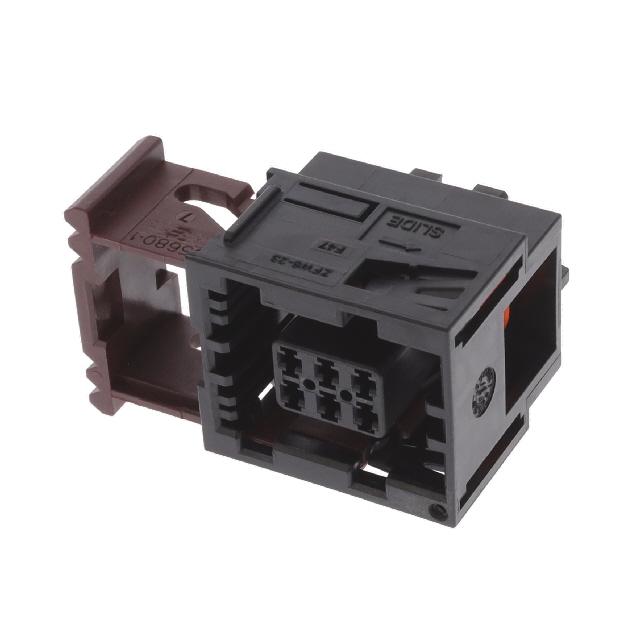

CONN RCPT HSG 6POS 4.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 6POS 4.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	6-1355683-3

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	4 mm
Pitch [x]	0.157 in

CONN RCPT HSG 6POS 4.00MM

Part	Mounting Type	Color	Number of Positions	Contact Type	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Note	Pitch [x]	Pitch [x]	Number of Rows	Contact Termination
TE Connectivity AMP Connectors 6-1355683-3	Free Hanging (In-Line)	Black	6	Female Socket	Polybutylene Terephthalate (PBT), Glass Filled	85 °C	-40 °C	Receptacle	Contacts Not Included	4 mm	0.157 in	2	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Receptacle Black 0.157" (4.00mm)

Technical documentation and resources

No documents available
