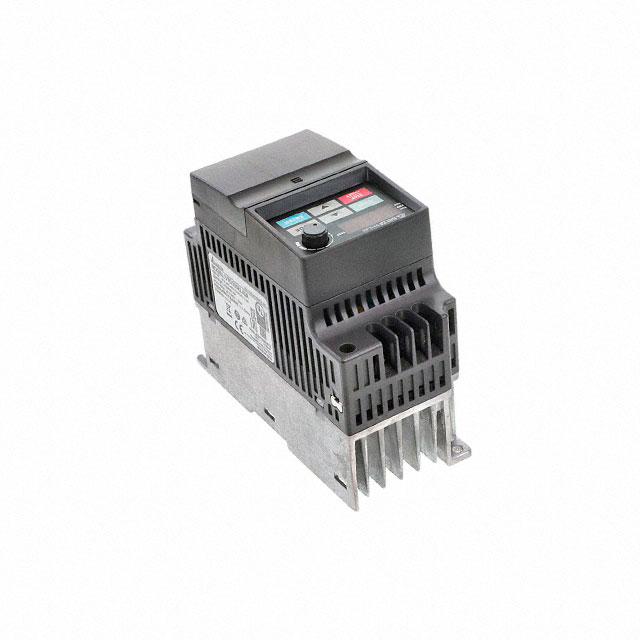

VFD015EL43A

Delta Electronics/Industrial Automation

VFD-EL, 2HP 480V, MICRO DRIVE

Search across all available documentation for this part.

Delta Electronics/Industrial Automation

VFD-EL, 2HP 480V, MICRO DRIVE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 284.48

General part information

VFD-EL, 2HP 480V, MICRO DRIVE

Technical documentation and resources

No documents available

Specification	VFD015EL43A	VFD015 Series

Current - Output	4.2 A	4 - 8 A
Interface	RS-485	CAN, RS-485
Mounting Type	Chassis Mount, DIN Rail	Chassis Mount, DIN Rail
Operating Temperature [Max] [custom]	50 °C	50 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Voltage - Supply	460 VAC	230 - 460 VAC
Wattage - Load	1.5 kW	1.5 kW

Part	Voltage - Supply	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Wattage - Load	Current - Output	Interface	Mounting Type
Delta Electronics/Industrial Automation VFD015C23A	230 VAC	-10 °C	50 °C	1.5 kW	8 A	CAN	Chassis Mount
Delta Electronics/Industrial Automation VFD015EL23A	230 VAC	-10 °C	50 °C	1.5 kW	7.5 A	RS-485	Chassis Mount, DIN Rail
Delta Electronics/Industrial Automation VFD015C43A	460 VAC	-10 °C	50 °C	1.5 kW	4 A	CAN	Chassis Mount
Delta Electronics/Industrial Automation VFD015EL21A	230 VAC	-10 °C	50 °C	1.5 kW	7.5 A	RS-485	Chassis Mount, DIN Rail
Delta Electronics/Industrial Automation VFD015CP23A-21	230 VAC	-10 °C	50 °C	1.5 kW	7.5 A	CAN	Chassis Mount
Delta Electronics/Industrial Automation VFD015EL43A	460 VAC	-10 °C	50 °C	1.5 kW	4.2 A	RS-485	Chassis Mount, DIN Rail
