2-1241959-4
ActiveTE Connectivity AMP Connectors

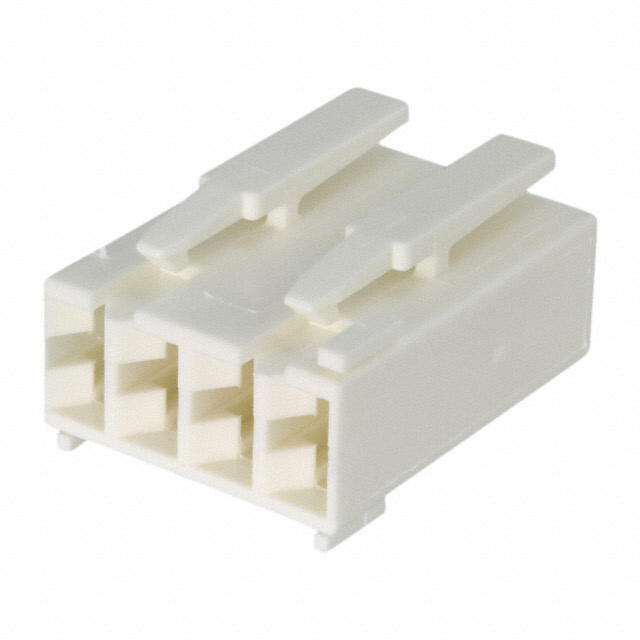

CONN RCPT HSG 4POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1241959-4
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 4POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1241959-4 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA6), Nylon 6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.50 | |
| 10 | $ 0.48 | |||
| 25 | $ 0.48 | |||
| 50 | $ 0.47 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.36 | |||
1241959 Series
CONN RCPT HSG 4POS 5.00MM
| Part | Contact Type | Pitch [x] | Pitch [x] | Mounting Type | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Insulation Material | Fastening Type | Note | Contact Termination | Number of Rows | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1241959-4 | Female Socket | 5 mm | 0.197 in | Free Hanging (In-Line) | Receptacle | -40 °C | 105 ░C | Natural | Polyamide (PA6), Nylon 6 | Latch Lock | Contacts Not Included | Crimp | 1 | 4 |
Description
General part information
1241959 Series
4 Rectangular Connectors - Housings Receptacle Natural 0.197" (5.00mm)
