JN1VFS10SL2

Active

JAE Electronics

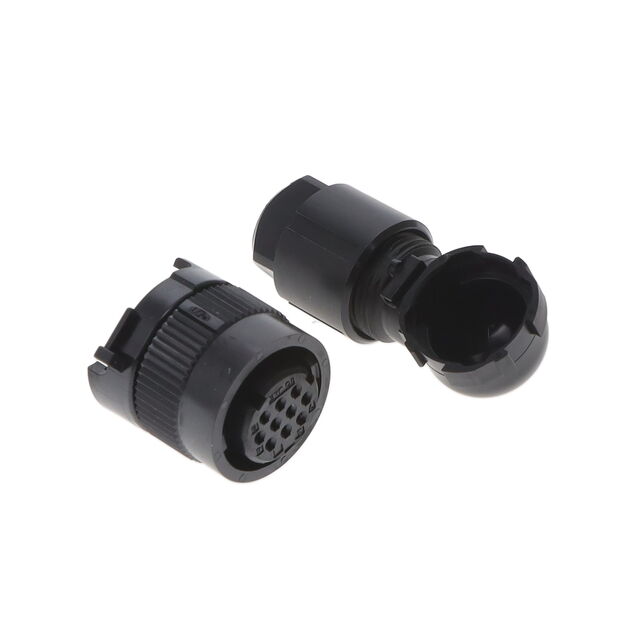

CONN PLG HSG FMALE 10POS RA

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLG HSG FMALE 10POS RA

Technical Specifications

Parameters and characteristics for this part

Specification	JN1VFS10SL2

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	22
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-20 C
Orientation	N
Shell Material	Synthetic Resin
Shell Size - Insert	S
Shielding	Unshielded
Type	For Female Sockets

Part	Ingress Protection	Contact Size	Contact Type	Housing Color	Number of Positions	Mounting Type	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Insert Material	Orientation	Fastening Type	Type	Note	Contact Shape	Features	Connector Type	Shielding
JAE Electronics JN1VFS10SL2	IP67 - Dust Tight Waterproof	22	Crimp	Black	10	Free Hanging (In-Line) Right Angle	S	-20 C	125 °C	Synthetic Resin	Synthetic Resin	N	Push-Twist	For Female Sockets	Contacts Not Included	Circular	Backshell Coupling Nut	Plug Housing	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Coupling Nut
