LB25WGG01-EJ

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Search across all available documentation for this part.

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Specification	LB25WGG01-EJ

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Yellow
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Current Rating (Amps)	Ingress Protection	Circuit	Color - Actuator/Cap	Electrical Life	Panel Cutout Dimensions [diameter]	Switch Function	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Actuator Marking	Actuator Type	Voltage Rating - DC	Termination Style	Termination Style	Termination Style	Type	Mounting Type	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches LB25WGG01-EJ	0.4 VA	IP65 - Dust Tight Water Resistant	DPDT	Yellow	100000 Cycles	22 mm	On-Mom	1000000 Cycles	70 °C	-25 °C	28 V	No Marking	Button Round	28 V	0.11 in	Quick Connect Solder	2.8 mm	Standard	Panel Mount Front
NKK Switches LB25WGG01-5C12-JC	0.4 VA	IP65 - Dust Tight Water Resistant	DPDT	Clear (Red Filter/Diffuser)	100000 Cycles	22 mm	On-Mom	1000000 Cycles	50 °C	-25 °C	28 V	No Marking	Button Round	28 V	0.11 in	Quick Connect Solder	2.8 mm	Illuminated Standard	Panel Mount Front	12 VDC	LED Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

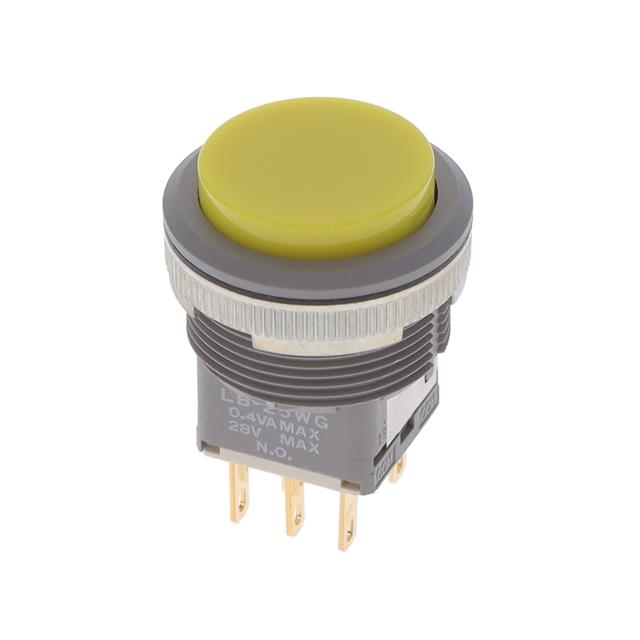

Pushbutton Switch DPDT Standard Panel Mount, Front
