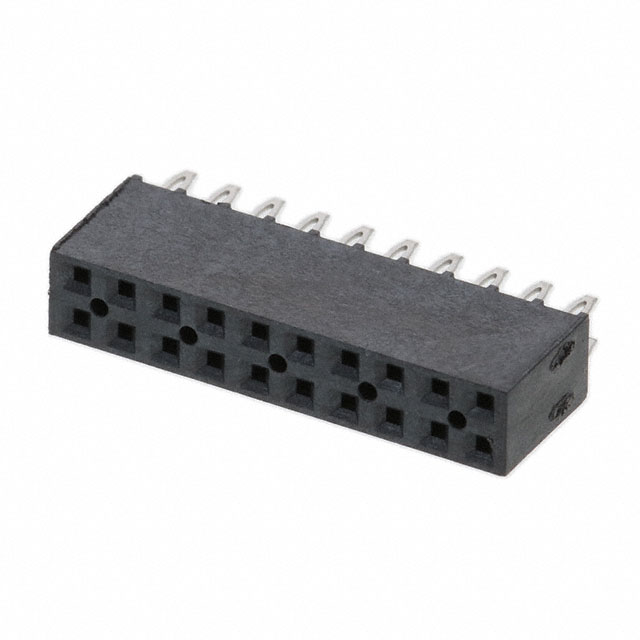

PHF-110-01-L-D

Active

Samtec Inc.

CONN RCPT 10POS 0.1 GOLD PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 10POS 0.1 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	PHF-110-01-L-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post [x]	3.12 mm
Contact Length - Post [x]	0.123 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	4.8 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder, Press-Fit

Part	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Rows	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Type	Material Flammability Rating	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Contact Finish - Post	Connector Type	Number of Positions Loaded	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions	Insulation Color	Contact Shape
Samtec Inc. PHF-110-01-L-D	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	2	Through Hole	3.12 mm	0.123 in	Press-Fit Solder	10 çin	0.25 çm	Phosphor Bronze	Forked	UL94 V-0	0.335 "	8.51 mm	2.54 mm	0.1 in	Push-Pull	Tin	Receptacle	All	Gold	-55 °C	125 °C	4.8 A	10	Black	Square
