Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 110.60 | |
| 10 | $ 101.75 | |||
| 50 | $ 94.01 | |||
| 100 | $ 89.59 | |||
General part information
General Purpose Relay DPDT (2 Form C) DIN Rail
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2941439 | 29414 Series |
|---|---|---|
| Approval Agency | EAC, cURus, UR | EAC, cURus, UR |
| Coil Current | 18 mA | 6 - 18 mA |
| Coil Resistance | 1.33 kOhms | 1.33 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VAC | 24 - 120 VAC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 50 mA | 5 - 50 mA |
| Features | Lighted Indicator, Socket Included | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 8 ms | 8 ms |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 10 ms | 10 ms |
| Switching Voltage | 36 VDC, 30 VAC | 30 - 250 VDC |
| Termination Style | Screw Terminal | Screw Terminal |

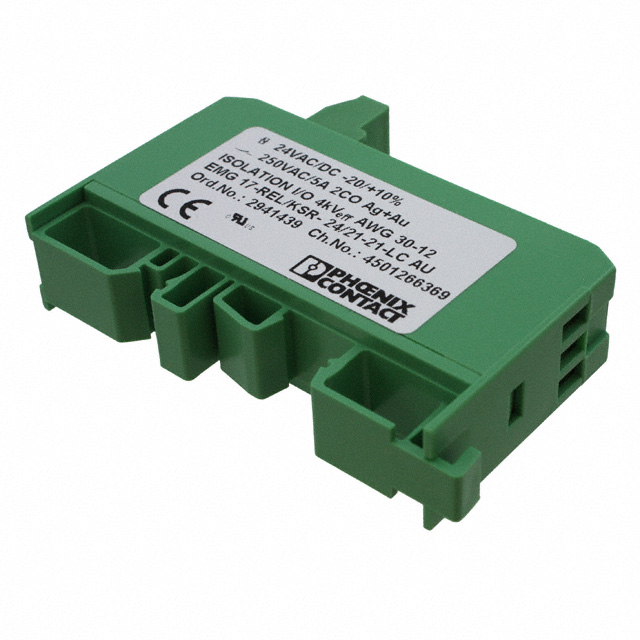

RELAY GEN PURPOSE DPDT 50MA 24V
| Part | Contact Rating (Current) | Approval Agency | Coil Type | Features | Coil Current | Coil Resistance | Switching Voltage | Coil Voltage | Relay Type | Release Time | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Operate Time | Contact Form | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2941439 | 50 mA | cURus, EAC, UR | Non Latching | Lighted Indicator, Socket Included | 18 mA | 1.33 kOhms | 30 VAC, 36 VDC | 24 VAC | General Purpose | 10 ms | Gold (Au), Silver Nickel (AgNi) | -20 C | 40 °C | DIN Rail | 8 ms | DPDT (2 Form C) | Screw Terminal |
Phoenix Contact 2941455 | 5 A | Non Latching | Lighted Indicator, Socket Included | 6 mA | 250 VAC, 250 VDC | 120 VAC, 120 VDC | General Purpose | 10 ms | Gold (Au), Silver Nickel (AgNi) | -20 C | 40 °C | DIN Rail | 8 ms | DPDT (2 Form C) | Screw Terminal |
