2941455

Active

Phoenix Contact

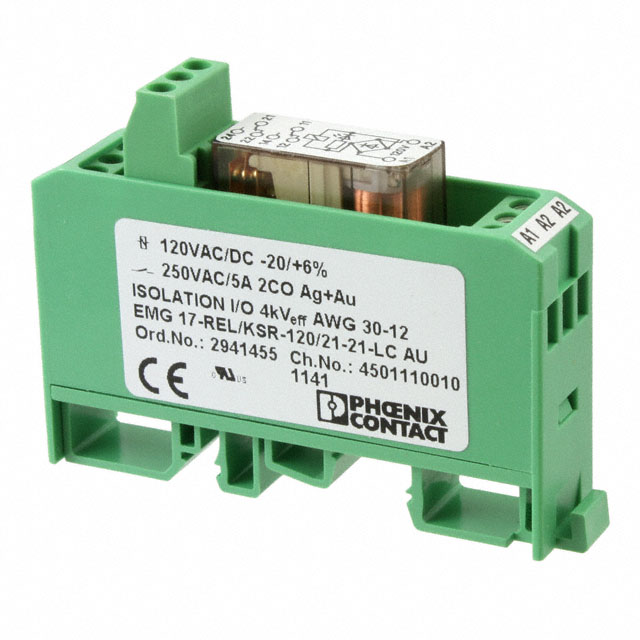

RELAY GEN PURPOSE DPDT 5A 120V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 5A 120V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2941455	29414 Series

Approval Agency	-	EAC, cURus, UR
Coil Current	6 mA	6 - 18 mA
Coil Resistance	-	1.33 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	120 VAC, 120 VDC	24 - 120 VAC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	5 A	5 - 50 mA
Features	Lighted Indicator, Socket Included	Lighted Indicator, Socket Included
Mounting Type	DIN Rail	DIN Rail
Operate Time	8 ms	8 ms
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-20 C	-20 C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	10 ms
Switching Voltage	250 VAC, 250 VDC	30 - 250 VDC
Termination Style	Screw Terminal	Screw Terminal

RELAY GEN PURPOSE DPDT 50MA 24V

Part	Contact Rating (Current)	Approval Agency	Coil Type	Features	Coil Current	Coil Resistance	Switching Voltage	Coil Voltage	Relay Type	Release Time	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Operate Time	Contact Form	Termination Style
Phoenix Contact 2941439	50 mA	cURus, EAC, UR	Non Latching	Lighted Indicator, Socket Included	18 mA	1.33 kOhms	30 VAC, 36 VDC	24 VAC	General Purpose	10 ms	Gold (Au), Silver Nickel (AgNi)	-20 C	40 °C	DIN Rail	8 ms	DPDT (2 Form C)	Screw Terminal
Phoenix Contact 2941455	5 A		Non Latching	Lighted Indicator, Socket Included	6 mA		250 VAC, 250 VDC	120 VAC, 120 VDC	General Purpose	10 ms	Gold (Au), Silver Nickel (AgNi)	-20 C	40 °C	DIN Rail	8 ms	DPDT (2 Form C)	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 120VAC/DC Coil DIN Rail
