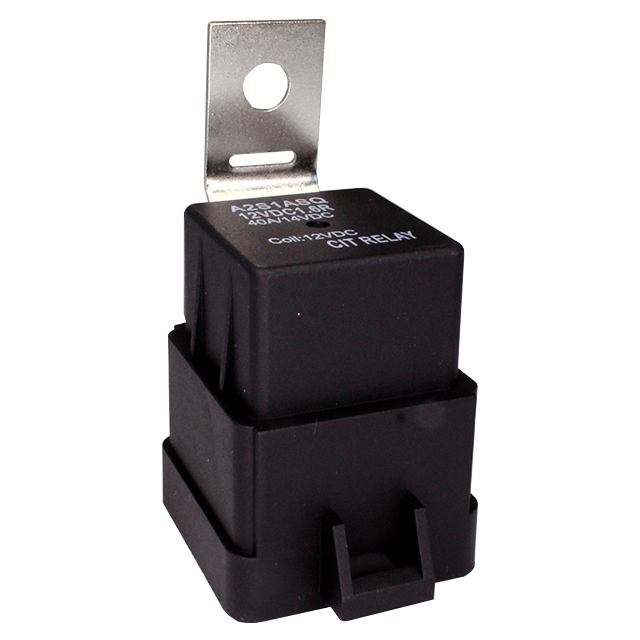

A2S1ASQ12VDC1.6R

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 40A 12V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 40A 12V

Technical Specifications

Parameters and characteristics for this part

RELAY AUTOMOTIVE SPST 40A 12V

Part	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Must Operate Voltage	Release Time	Operate Time	Coil Type	Mounting Type	Coil Resistance	Coil Voltage	Features	Termination Style	Coil Power	Contact Form	Contact Rating (Current)	Must Release Voltage	Switching Voltage
CIT Relay and Switch A2S1ASQ12VDC1.6R	133.3 mA	125 °C	-40 °C	Silver Tin Oxide (AgSnO)	8.4 VDC	5 ms	7 ms	Non Latching	Chassis Mount	90 Ohms	12 VDC	Resistor, Sealed - Fully	Quick Connect - 0.250" (6.3mm)	1.6 W	SPST-NO (1 Form A)	40 A	1.2 VDC	75 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPST 40A 12V
