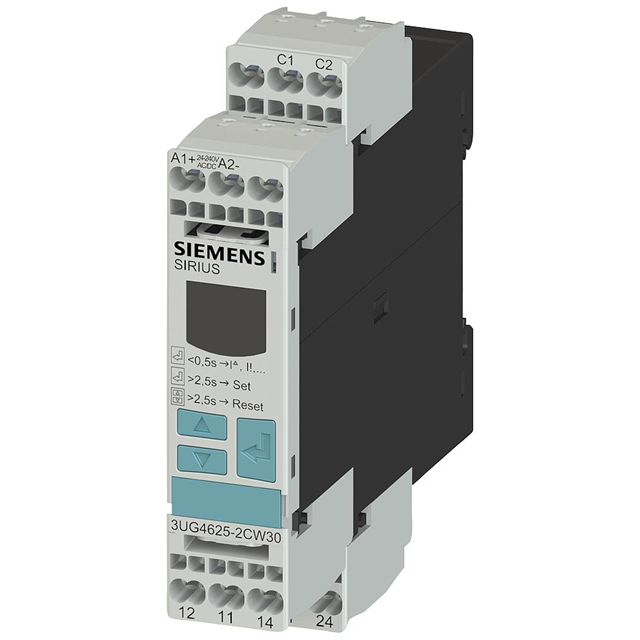

3UG46252CW30
ActiveSiemens
DIGITAL MONITORING RELAY,40A,240
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3UG46252CW30
ActiveSiemens
DIGITAL MONITORING RELAY,40A,240
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3UG46252CW30 |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 250 VAC, 3 A |
| Delay Time [Max] | 20 s |
| Delay Time [Min] | 0.1 Sec |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Trip Range [Max] | 43 A |
| Trip Range [Min] | 0.01 A |
| Type | Current Sensing AC/DC |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 24 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 300.89 | |
Description
General part information
3UG4625 Series
Current Sensing AC/DC 24 ~ 240VAC/DC
