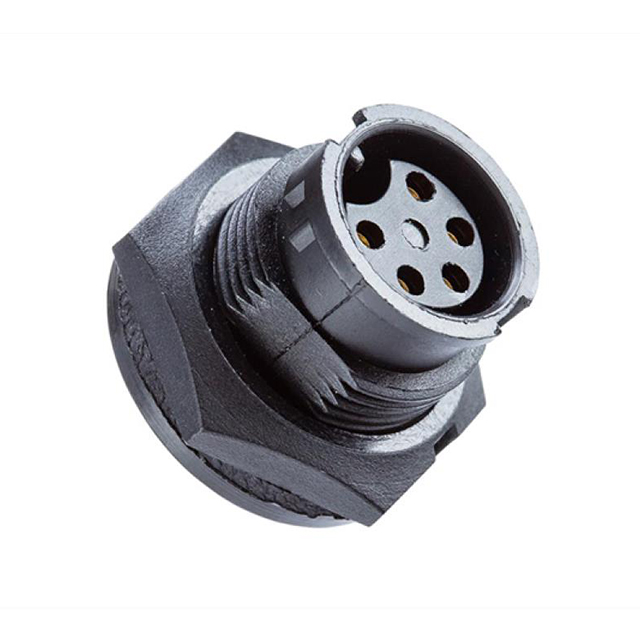

BD-05PMFP-LC7001

Active

Amphenol LTW

CERES, STANDARD SIZE, 5A, 05 PINS, RECEPTACLE, CIRCULAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, STANDARD SIZE, 5A, 05 PINS, RECEPTACLE, CIRCULAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Color	Shielding	Shell Size - Insert	Termination	Insert Material	Primary Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Current Rating (Amps)	Contact Finish - Mating	Orientation	Mounting Feature	Ingress Protection	Contact Material	Shell Material
Amphenol LTW BD-05PMFP-LC7001	Black	Unshielded	B	Solder	Thermoplastic	Plastic	250 VDC	-40 °C	105 ░C	Receptacle Female Sockets	5 A	Gold	Keyed	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	Copper Alloy
Amphenol LTW BD-05PMFP-SC7001	Black	Unshielded	B	Solder	Polyamide (PA) Nylon Glass Filled	Plastic	250 VDC	-40 °C	105 ░C	Receptacle Female Sockets	5 A	Gold	Keyed	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	Copper Alloy	Glass Filled Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder
