FZ400R12KE3B1HOSA1

Active

Infineon Technologies

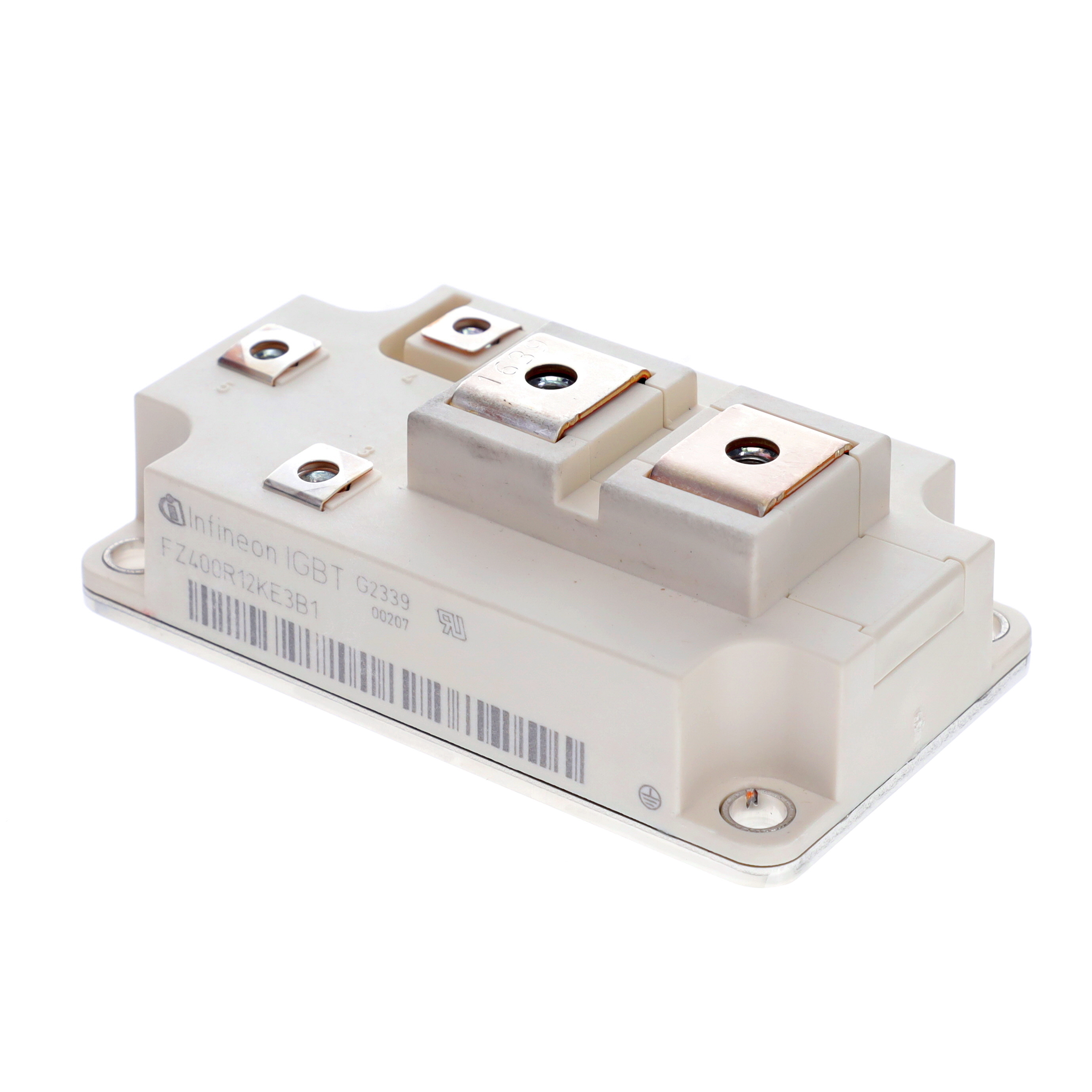

THE FZ400R12KE3B1 IS A SINGLE SWITCH IGBT3 - E3 MODULE IN A 62 MM HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 400 A.

Search across all available documentation for this part.

Active

Infineon Technologies

THE FZ400R12KE3B1 IS A SINGLE SWITCH IGBT3 - E3 MODULE IN A 62 MM HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 400 A.

Technical Specifications

Parameters and characteristics for this part

Specification	FZ400R12KE3B1HOSA1

Configuration	Single
Current - Collector (Ic) (Max) [Max]	650 A
Current - Collector Cutoff (Max) [Max]	5 mA
Input	Standard
Input Capacitance (Cies) @ Vce	28 nF
Mounting Type	Chassis Mount
NTC Thermistor	False
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	2250 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.15 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Vce(on) (Max) @ Vge, Ic	Supplier Device Package	Input Capacitance (Cies) @ Vce	NTC Thermistor	Current - Collector Cutoff (Max) [Max]	Configuration	Package / Case	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]	Mounting Type	Input
Infineon Technologies FZ400R12KE3HOSA1	2.15 V	Module	28 nF		5 mA	Single	Module	650 A	1200 V	125 °C	-40 °C	2250 W	Chassis Mount	Standard
Infineon Technologies FZ400R12KE3B1HOSA1	2.15 V	Module	28 nF		5 mA	Single	Module	650 A	1200 V	125 °C	-40 °C	2250 W	Chassis Mount	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

62 mm1200 V, 400 A single switchIGBT modulewith IGBT3 and auxiliary collector sense.
