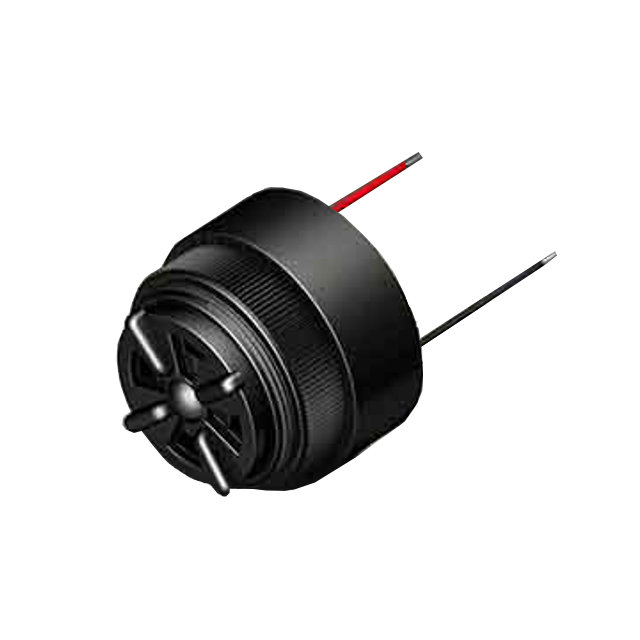

MC-V07-116-W

Active

Floyd Bell Inc

BUZZER PIEZO 35.81MM PNL MNT

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER PIEZO 35.81MM PNL MNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MC-V07-116-W	MC-V07-116 Series

Approval Agency	UR, UL	UR, UL
Current - Supply [Max]	30 mA	30 mA
Current - Supply [Min]	5 mA	5 mA
Driver Circuitry	Internally Driven, Indicator	Internally Driven, Indicator
Frequency	2.9 kHz	2.9 kHz
Height - Seated (Max) [Max] [z]	1.14 "	1.14 "
Height - Seated (Max) [Max] [z]	28.96 mm	28.96 mm
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Input Type	DC	DC
Operating Mode	Single Tone	Single Tone
Port Location	Top	Top
Size / Dimension [diameter]	1.41 in	1.41 in
Size / Dimension [diameter]	35.81 mm	35.81 mm
Technology	Piezo	Piezo
Termination	Wire Leads	Quick Connect Tab - 0.250" (6.35mm), Screw Terminal, Quick Connect Tab - 0.250" (6.35mm), Wire Leads
Voltage Range [Max]	16 V	16 V
Voltage Range [Min]	3 V	3 V

BUZZER PIEZO 35.81MM PNL MNT

Part	Driver Circuitry	Technology	Termination	Port Location	Current - Supply [Max]	Current - Supply [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Input Type	Frequency	Ingress Protection	Approval Agency	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Range [Max]	Voltage Range [Min]	Operating Mode
Floyd Bell Inc MC-V07-116-Q	Indicator, Internally Driven	Piezo	Quick Connect Tab - 0.250" (6.35mm)	Top	30 mA	5 mA	1.14 "	28.96 mm	DC	2.9 kHz	IP68 - Dust Tight, Waterproof	UL, UR	1.41 in	35.81 mm	16 V	3 V	Single Tone
Floyd Bell Inc MC-V07-116-S	Indicator, Internally Driven	Piezo	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	Top	30 mA	5 mA	1.14 "	28.96 mm	DC	2.9 kHz	IP68 - Dust Tight, Waterproof	UL, UR	1.41 in	35.81 mm	16 V	3 V	Single Tone
Floyd Bell Inc MC-V07-116-W	Indicator, Internally Driven	Piezo	Wire Leads	Top	30 mA	5 mA	1.14 "	28.96 mm	DC	2.9 kHz	IP68 - Dust Tight, Waterproof	UL, UR	1.41 in	35.81 mm	16 V	3 V	Single Tone

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.08

General part information

Buzzers Indicator, Internally Driven Piezo 5 ~ 30mA 2.9kHz 93dB @ 16V, 61cm Panel Mount Wire Leads
