H3WWH-2406M

Active

Assmann WSW Components

IDC CBL - HPPL24H/AE24M/HHPL24H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HPPL24H/AE24M/HHPL24H

Technical Specifications

Parameters and characteristics for this part

Part	Length [x]	Length [x]	Number of Rows	Shielding	Number of Positions	Pitch - Connector	Pitch - Connector	Features	Cable Termination	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Type	Color	Length	Length	Length
Assmann WSW Components H3WWH-2418G	457.2 mm	1.5 ft	2	Unshielded	24	0.1 in	2.54 mm	Flange Polarizing Key	IDC	0.05 "	1.27 mm	15 µin	0.38 µm	Gold	Plug to Plug
Assmann WSW Components H3WWH-2418M	457.2 mm	1.5 ft	2	Unshielded	24	0.1 in	2.54 mm	Flange Polarizing Key	IDC	0.05 "	1.27 mm	15 µin	0.38 µm	Gold	Plug to Plug	Multiple Ribbon
Assmann WSW Components H3WWH-2406M			2	Unshielded	24	0.1 in	2.54 mm	Flange Polarizing Key	IDC	0.05 "	1.27 mm	15 µin	0.38 µm	Gold	Plug to Plug	Multiple Ribbon	152.4 mm	6 "	0.5 '
Assmann WSW Components H3WWH-2436M	914.4 mm	3 ft	2	Unshielded	24	0.1 in	2.54 mm	Flange Polarizing Key	IDC	0.05 "	1.27 mm	15 µin	0.38 µm	Gold	Plug to Plug	Multiple Ribbon
Assmann WSW Components H3WWH-2436G	914.4 mm	3 ft	2	Unshielded	24	0.1 in	2.54 mm	Flange Polarizing Key	IDC	0.05 "	1.27 mm	15 µin	0.38 µm	Gold	Plug to Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

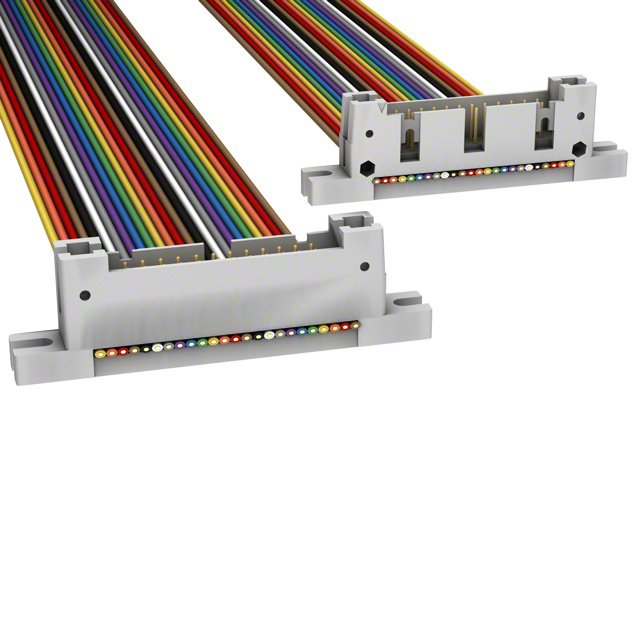

24 Position Cable Assembly Rectangular Plug to Plug 0.500' (152.40mm, 6.00")
