AS2.5/Y

Active

Altech Corporation

ANGULAR SPRING CLAMP 25A600V22-1

Search across all available documentation for this part.

Active

Altech Corporation

ANGULAR SPRING CLAMP 25A600V22-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

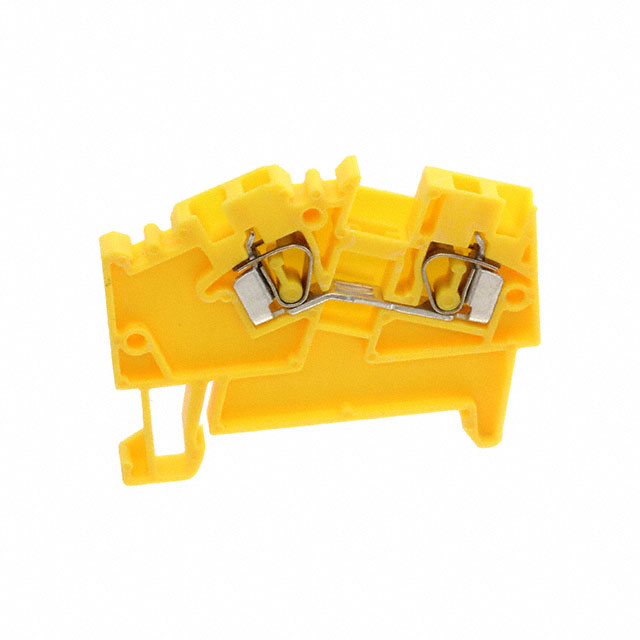

Terminal Block Connector 2 Position Feed Through Yellow 12-22 AWG

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	AS2.5/Y	AS2.5 Series

Color	Yellow	Red, Green, Gray, Black, Blue, Yellow
Current - IEC	24 A	24 A
Current - UL	25 A	25 A
Material - Insulation	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Number of Levels	1	1
Number of Positions	2	2 - 4
Stripping Length	11 mm	11 mm
Terminal - Width	5 mm	5 mm
Termination Style	Push In, Spring	Push In, Spring
Type	Feed Through	Feed Through
Voltage - IEC	800 V	800 V
Voltage - UL	600 V	600 V
Wire Gauge or Range - AWG [Max]	22 AWG	22 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛	-	0.34 mm˛
Wire Gauge or Range - mm˛	-	2.5 mm˛
Wire Gauge or Range - mm² [Max]	2.5 mm²	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.34 mm²	0.34 mm²

ANGULAR SPRING CLAMP 1IN 2OUT 25

Part	Current - UL	Stripping Length	Termination Style	Material - Insulation	Current - IEC	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Voltage - UL	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Type	Terminal - Width	Number of Levels	Color	Voltage - IEC	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
Altech Corporation AS2.5/3/R	25 A	11 mm	Push In, Spring	Polyamide (PA66), Nylon 6/6	24 A	0.34 mm˛	2.5 mm˛	600 V	12 AWG	22 AWG	Feed Through	5 mm	1	Red	800 V
Altech Corporation AS2.5/G	25 A	11 mm	Push In, Spring	Polyamide (PA66), Nylon 6/6	24 A	0.34 mm˛	2.5 mm˛	600 V	12 AWG	22 AWG	Feed Through	5 mm	1	Green	800 V	2
Altech Corporation AS2.5	25 A	11 mm	Push In, Spring	Polyamide (PA66), Nylon 6/6	24 A			600 V	12 AWG	22 AWG	Feed Through	5 mm	1	Gray	800 V	2	0.34 mm²	2.5 mm²
Altech Corporation AS2.5/3/BL	25 A	11 mm	Push In, Spring	Polyamide (PA66), Nylon 6/6	24 A			600 V	12 AWG	22 AWG	Feed Through	5 mm	1	Black	800 V		0.34 mm²	2.5 mm²
Altech Corporation AS2.5/4	25 A	11 mm	Push In, Spring	Polyamide (PA66), Nylon 6/6	24 A			600 V	12 AWG	22 AWG	Feed Through	5 mm	1	Gray	800 V	4	0.34 mm²	2.5 mm²
Altech Corporation AS2.5/3/BU	25 A	11 mm	Push In, Spring	Polyamide (PA66), Nylon 6/6	24 A	0.34 mm˛	2.5 mm˛	600 V	12 AWG	22 AWG	Feed Through	5 mm	1	Blue	800 V
Altech Corporation AS2.5/3	25 A	11 mm	Push In, Spring	Polyamide (PA66), Nylon 6/6	24 A			600 V	12 AWG	22 AWG	Feed Through	5 mm	1	Gray	800 V		0.34 mm²	2.5 mm²
Altech Corporation AS2.5/Y	25 A	11 mm	Push In, Spring	Polyamide (PA66), Nylon 6/6	24 A			600 V	12 AWG	22 AWG	Feed Through	5 mm	1	Yellow	800 V	2	0.34 mm²	2.5 mm²
