QSH2818-51-07-012-8K
ActiveAnalog Devices Inc./Maxim Integrated

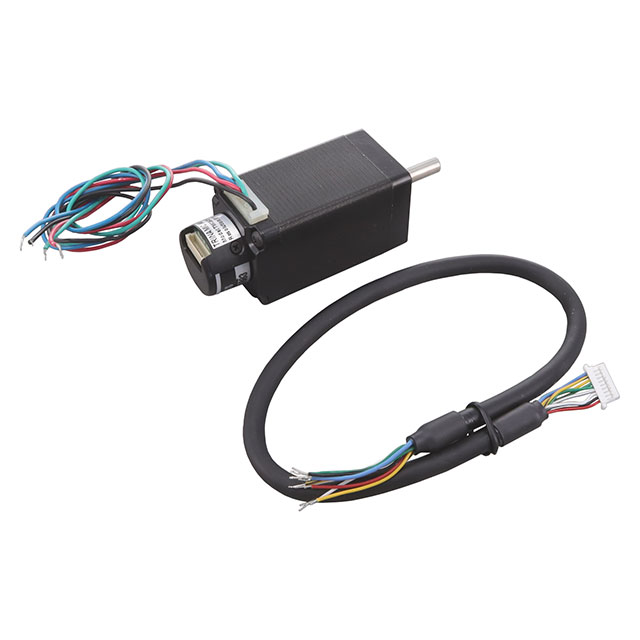

STEP MOTOR HYBRID NEMA11 ENC 819
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QSH2818-51-07-012-8K
ActiveAnalog Devices Inc./Maxim Integrated
STEP MOTOR HYBRID NEMA11 ENC 819
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | QSH2818-51-07-012-8K | QSH2818 Series |
|---|---|---|
| Approval Agency | CE | CE |
| Coil Resistance | 9.2 Ohms | 5.6 - 9.2 Ohms |
| Coil Type | Bipolar | Bipolar |
| Current Rating (Amps) | 0.67 A | 0.67 A |
| Diameter - Shaft [diameter] | 0.197 in | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm | 5 mm |
| Features | Flatted Shaft | Flatted Shaft |
| Length - Shaft and Bearing [x] | 20 mm | 20 mm |
| Length - Shaft and Bearing [x] | 0.787 in | 0.787 in |
| Mounting Hole Spacing | 23 mm | 22.98 - 23 mm |
| Mounting Hole Spacing | 0.906 in | 0.905 - 0.906 in |
| NEMA Frame Size | 11 | 11 |
| Operating Temperature [Max] | 50 °C | 50 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Rotor Inertia | 18 gcm² | 9 - 18 gcm² |
| Size / Dimension [x] | 28 mm | 28 mm |
| Size / Dimension [x] | 1.1 " | 1.1 " |
| Size / Dimension [y] | 1.1 in | 1.1 in |
| Size / Dimension [y] | 28 mm | 28 mm |
| Step Angle | 1.8 ° | 1.8 ° |
| Steps per Revolution | 200 | 200 |
| Termination Style | Wire Leads | Wire Leads |
| Torque - Holding (oz-in / mNm) | 17 oz-in | 8.49 - 17 oz-in |
| Torque - Holding (oz-in / mNm) | 120 mNm | 60 - 120 mNm |
| Type | Hybrid | Hybrid |
| Voltage - Rated | - | 3.8 VDC |
| Weight | - | 109.77 - 200.03 g |
| Weight | - | 0.242 - 0.441 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 178.30 | |
| 5 | $ 163.86 | |||
| 10 | $ 158.01 | |||
| 25 | $ 151.81 | |||
QSH2818 Series
STEP MOTOR HYBRID BIPOLAR 6.2V
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Steps per Revolution | Type | Termination Style | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Approval Agency | NEMA Frame Size | Coil Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Mounting Hole Spacing | Mounting Hole Spacing | Features | Step Angle | Weight | Weight | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Coil Resistance | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Current Rating (Amps) | Rotor Inertia | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated QSH2818-51-07-012 | 50 °C | -20 C | 200 | Hybrid | Wire Leads | 20 mm | 0.787 in | CE | 11 | Bipolar | 28 mm | 1.1 " | 1.1 in | 28 mm | 0.905 in | 22.98 mm | Flatted Shaft | 1.8 ° | 200.03 g | 0.441 lb | 17 oz-in | 120 mNm | 9.2 Ohms | 0.197 in | 5 mm | 0.67 A | 18 gcm² | |
Analog Devices Inc./Maxim Integrated QSH2818-32-07-006-8K | 50 °C | -20 C | 200 | Hybrid | Wire Leads | 20 mm | 0.787 in | CE | 11 | Bipolar | 28 mm | 1.1 " | 1.1 in | 28 mm | 0.906 in | 23 mm | Flatted Shaft | 1.8 ° | 8.49 oz-in | 60 mNm | 5.6 Ohms | 0.197 in | 5 mm | 0.67 A | 9 gcm² | 3.8 VDC | ||
Analog Devices Inc./Maxim Integrated QSH2818-51-07-012-8K | 50 °C | -20 C | 200 | Hybrid | Wire Leads | 20 mm | 0.787 in | CE | 11 | Bipolar | 28 mm | 1.1 " | 1.1 in | 28 mm | 0.906 in | 23 mm | Flatted Shaft | 1.8 ° | 17 oz-in | 120 mNm | 9.2 Ohms | 0.197 in | 5 mm | 0.67 A | 18 gcm² | |||
Analog Devices Inc./Maxim Integrated QSH2818-32-07-006 | 50 °C | -20 C | 200 | Hybrid | Wire Leads | 20 mm | 0.787 in | CE | 11 | Bipolar | 28 mm | 1.1 " | 1.1 in | 28 mm | 0.905 in | 22.98 mm | Flatted Shaft | 1.8 ° | 109.77 g | 0.242 lb | 8.49 oz-in | 60 mNm | 5.6 Ohms | 0.197 in | 5 mm | 0.67 A | 9 gcm² | 3.8 VDC |
Description
General part information
QSH2818 Series
Bipolar Stepper Motor Hybrid Frame Size 11 200.0 Step 670 mA 6.2VDC
