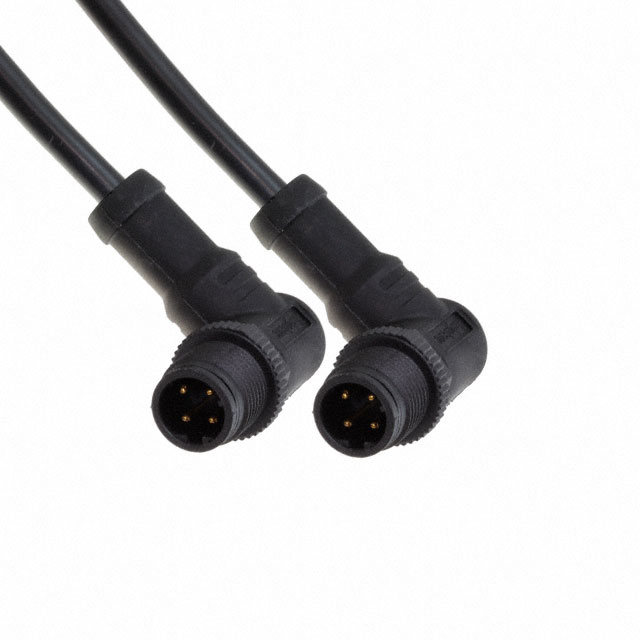

MSDP04MR-SDPMR-SD001

Active

Amphenol LTW

CBL 4POS MALE TO MALE 3.28'

Search across all available documentation for this part.

Active

Amphenol LTW

CBL 4POS MALE TO MALE 3.28'

Technical Specifications

Parameters and characteristics for this part

Specification	MSDP04MR-SDPMR-SD001

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	D
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Orientation	D
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Receptacle, Right Angle
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

Part	2nd Connector Shell Size - Insert	1st Connector Type	2nd Connector Mounting Type	Ingress Protection	Cable Type	2nd Connector Gender	Usage	Cable Material	Shielding	2nd Connector Number of Positions Loaded	1st Connector Orientation	1st Connector Mounting Type	2nd Connector Type	Length [x]	Length [x]	1st Connector Gender	2nd Connector Number of Positions	Assembly Configuration	1st Connector Number of Positions	1st Connector Shell Size - Insert	1st Connector Number of Positions Loaded	Color	2nd Connector Orientation
Amphenol LTW MSDP04MR-SDPFR-SBA05	M12	Receptacle Right Angle	Free Hanging (In-Line)	IP68 IP69K	Round	Female Sockets	Industrial Environments	Polyurethane (PUR)	Unshielded	All	D	Free Hanging (In-Line)	Plug Right Angle	1.64 ft	500 mm	Male Pins	4	Standard	4	M12	All	Black	D
Amphenol LTW MSDP04MR-SDPMR-SB001	M12	Receptacle Right Angle	Free Hanging (In-Line)	IP68 IP69K	Round		Industrial Environments	Polyurethane (PUR)	Unshielded	All	D	Free Hanging (In-Line)	Receptacle Right Angle	3.28 ft	1 m	Male Pins	4	Standard	4	M12	All	Black	D
Amphenol LTW MSDP04MR-SDPFR-SB001	M12	Receptacle Right Angle	Free Hanging (In-Line)	IP68 IP69K	Round	Female Sockets	Industrial Environments	Polyurethane (PUR)	Unshielded	All	D	Free Hanging (In-Line)	Plug Right Angle	3.28 ft	1 m	Male Pins	4	Standard	4	M12	All	Black	D
Amphenol LTW MSDP04MR-SDPMR-SD001	M12	Receptacle Right Angle	Free Hanging (In-Line)	IP68 IP69K	Round		Industrial Environments	Polyvinyl Chloride (PVC)	Unshielded	All	D	Free Hanging (In-Line)	Receptacle Right Angle	3.28 ft	1 m	Male Pins	4	Standard	4	M12	All	Black	D

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 3.28' (1.00m)
