788158-2

Active

TE Connectivity AMP Connectors

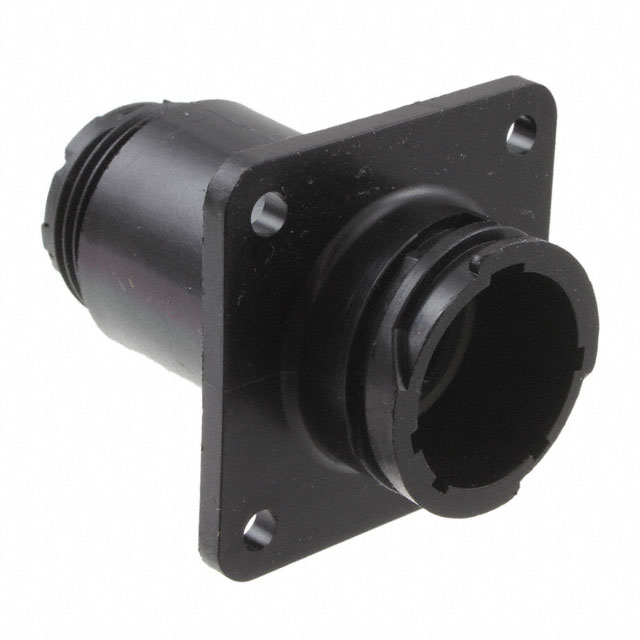

CONN RCPT HSNG MALE 9POS PNL MNT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSNG MALE 9POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	788158-2

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	9
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert	13-9
Shielding	Unshielded
Type	For Male Pins

CONN RCPT HSNG MALE 9POS PNL MNT

Part	Number of Positions	Housing Color	Material Flammability Rating	Type	Orientation	Contact Size	Connector Type	Mounting Feature	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Note	Shielding	Ingress Protection	Contact Type	Insert Material	Shell Size - Insert
TE Connectivity AMP Connectors 788158-2	9	Black	UL94 V-0	For Male Pins	Keyed	16	Receptacle Housing	Flange	Circular	105 ░C	-55 °C	Contacts Not Included	Unshielded	IP67 - Dust Tight, Waterproof	Crimp	Thermoplastic	13-9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Receptacle Housing Panel Mount
