GPVOUS-0.100-01-0816

Active

Bergquist

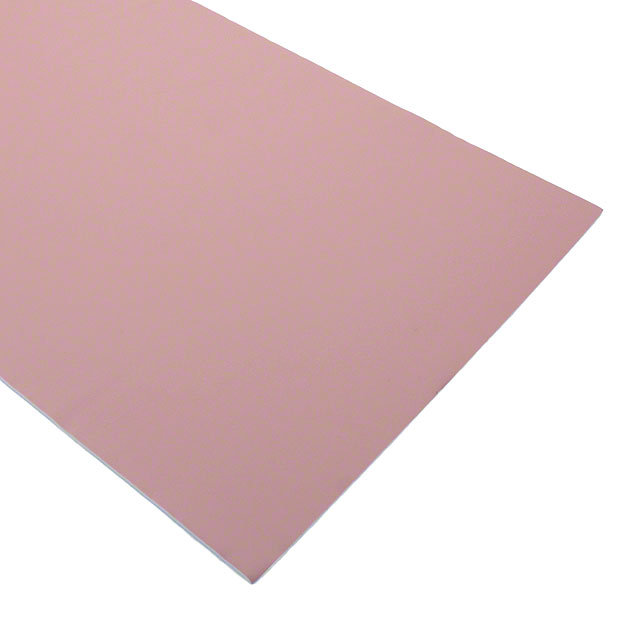

THERM PAD 406.4X203.2MM PINK

Search across all available documentation for this part.

Active

Bergquist

THERM PAD 406.4X203.2MM PINK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GPVOUS-0.100-01-0816	GPVOUS Series

Adhesive	Tacky - One Side	Tacky - One Side
Backing, Carrier	Sil-Pad	Sil-Pad
Color	Pink	Pink
Outline [x]	406.4 mm	406.4 mm
Outline [y]	203.2 mm	203.2 mm
Shape	Rectangular	Rectangular
Shelf Life	12 Months	12 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature	25 °C	25 °C
Storage/Refrigeration Temperature	77 °F	77 °F
Thickness	2.54 mm	0.508 - 3.18 mm
Thickness	0.1 in	0.02 - 0.125 in
Type	Gap Filler Pad, Sheet	Gap Filler Pad, Sheet

THERM PAD 406.4X203.2MM PINK

Part	Type	Thickness	Thickness	Adhesive	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Outline [x]	Outline [y]	Shape	Shelf Life	Color	Backing, Carrier	Shelf Life Start
Bergquist GPVOUS-0.040-01-0816	Gap Filler Pad, Sheet	1.016 mm	0.04 in	Tacky - One Side	25 °C	77 °F	406.4 mm	203.2 mm	Rectangular	12 Months	Pink	Sil-Pad	Date of Manufacture
Bergquist 2191191	Gap Filler Pad, Sheet	1.524 mm	0.06 in	Tacky - One Side	25 °C	77 °F	406.4 mm	203.2 mm	Rectangular	12 Months	Pink	Sil-Pad	Date of Manufacture
Bergquist GPVOUS-0.020-01-0816	Gap Filler Pad, Sheet	0.508 mm	0.02 in	Tacky - One Side	25 °C	77 °F	406.4 mm	203.2 mm	Rectangular	12 Months	Pink	Sil-Pad	Date of Manufacture
Bergquist GPVOUS-0.100-01-0816	Gap Filler Pad, Sheet	2.54 mm	0.1 in	Tacky - One Side	25 °C	77 °F	406.4 mm	203.2 mm	Rectangular	12 Months	Pink	Sil-Pad	Date of Manufacture
Bergquist 2191193	Gap Filler Pad, Sheet	3.18 mm	0.125 in	Tacky - One Side	25 °C	77 °F	406.4 mm	203.2 mm	Rectangular	12 Months	Pink	Sil-Pad	Date of Manufacture

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad Pink 406.40mm x 203.20mm Rectangular Tacky - One Side
