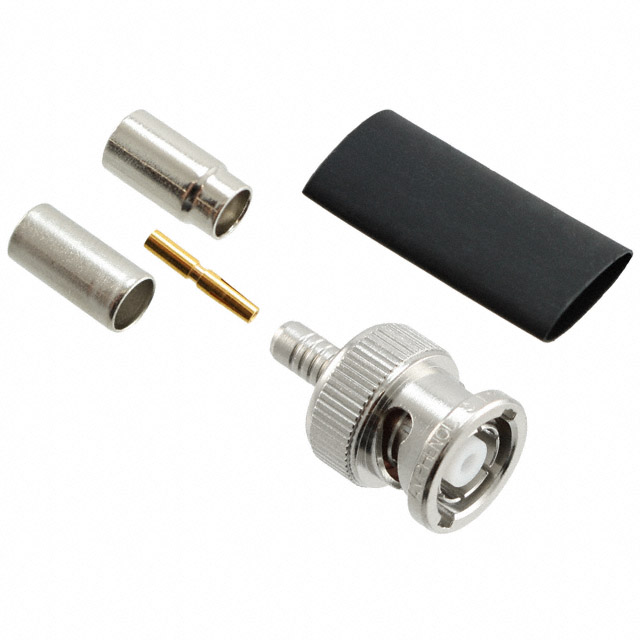

031-5705

AMPHENOL RF

CONN RPBNC PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

AMPHENOL RF

CONN RPBNC PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	031-5705

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	RP-BNC
Connector Type	Plug, Female Socket
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

CONN RPBNC PLUG STR 50 OHM CRIMP

Part	Connector Type	Fastening Type	Cable Group	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Body Finish	Mounting Type	Insertion Loss	Housing Color	Number of Ports	Mating Cycles	Shield Termination	Dielectric Material	Body Material	Frequency - Max [Max]	Connector Style	Impedance	Center Contact Plating	Contact Termination
AMPHENOL RF 031-5705	Female Socket, Plug	Bayonet Lock	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	500 V	-65 ░C	165 °C	Phosphor Bronze	Nickel	Free Hanging (In-Line)	0.2 dB	Silver	1	500	Crimp	Polytetrafluoroethylene (PTFE)	Brass	4 GHz	RP-BNC	50 Ohms	Gold	Crimp, Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-BNC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp or Solder
