DC0011/06-TI900-0.12-2A

Active

t-Global Technology

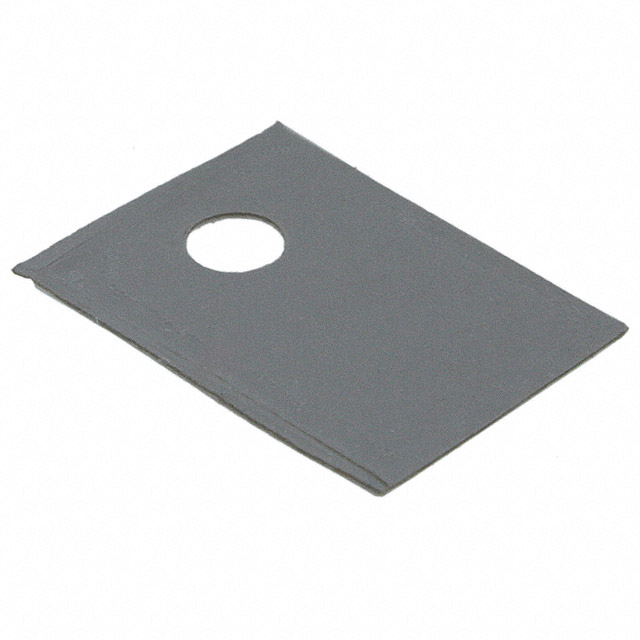

THERM PAD 18.03MMX12.7MM W/ADH

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 18.03MMX12.7MM W/ADH

Technical Specifications

Parameters and characteristics commom to parts in this series

THERM PAD 18.03MMX12.7MM WHT

Part	Type	Material	Thickness [x]	Thickness [x]	Shape	Usage	Thermal Conductivity	Shelf Life	Color	Outline [x]	Outline [y]	Backing, Carrier	Thickness	Thickness	Shelf Life Start	Adhesive	Thickness [custom]	Thickness [custom]
t-Global Technology DC0011/06-TI900-0.12-0	Die-Cut Pad, Sheet	Silicone	0.005 in	0.127 mm	Rectangular	TO-220	1.8 W/m-K	24 Months	White	18.03 mm	12.7 mm	Viscose
t-Global Technology DC0011/06-TG-AH482-2.0-0	Die-Cut Pad, Sheet				Rectangular	TO-220	2.2 W/m-K	24 Months	Red	18.03 mm	12.7 mm		0.008 in	0.203 mm
t-Global Technology DC0011/06-TG-A482K-0.1-0	Die-Cut Pad, Sheet	Silicone			Rectangular	TO-220	2.3 W/m-K	24 Months	Red	18.03 mm	12.7 mm		0.0039 in	0.1 mm	Date of Purchase
t-Global Technology DC0011/06-TI900-0.12-2A	Die-Cut Pad, Sheet	Silicone	0.005 in	0.127 mm	Rectangular	TO-220	1.8 W/m-K	24 Months	White	18.03 mm	12.7 mm	Viscose				Adhesive - Both Sides
t-Global Technology DC0011/06-TG-A486G-0.3-2A	Die-Cut Pad, Sheet				Rectangular	TO-220	6 W/m-K	12 Months	Gray	18.03 mm	12.7 mm				Date of Purchase	Adhesive - Both Sides	0.305 mm	0.012 "
t-Global Technology DC0011/06-TG-A373F-0.25-2A	Die-Cut Pad, Sheet				Rectangular	TO-220	1.4 W/m-K	12 Months	Yellow	18.03 mm	12.7 mm					Adhesive - Both Sides	0.254 mm	0.01 in
