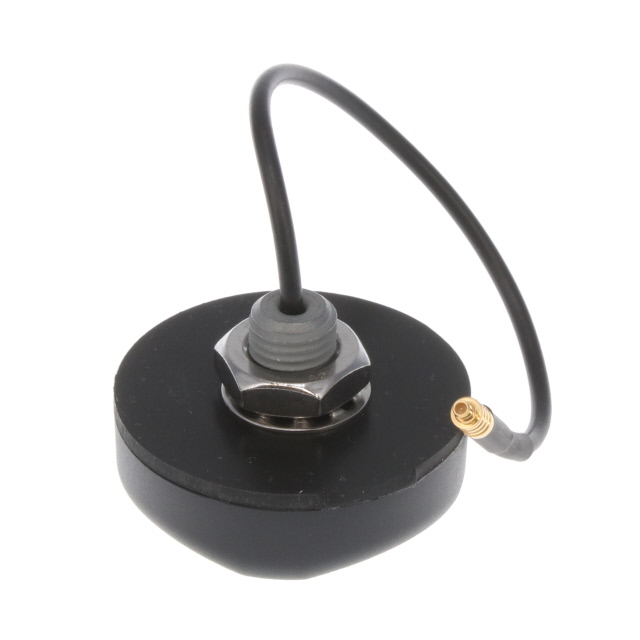

GPS1575SP26-004
ObsoleteTE Connectivity Raychem Cable Protection
RF ANT 1.575GHZ MOD MMCX PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GPS1575SP26-004
ObsoleteTE Connectivity Raychem Cable Protection
RF ANT 1.575GHZ MOD MMCX PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GPS1575SP26-004 |
|---|---|
| Antenna Type | Module |
| Applications | GPS |
| Features | Cable |
| Features | 2.032 m |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.576 GHz |
| Frequency Range [Min] | 1.574 GHz |
| Gain | 28 dBi |
| Height (Max) [Max] | 0.67 in |
| Height (Max) [Max] | 17.02 mm |
| Ingress Protection | IP67 |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | MMCX Male |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GPS1575 Series
RF ANTENNA GPS Module MMCX Male Panel Mount
