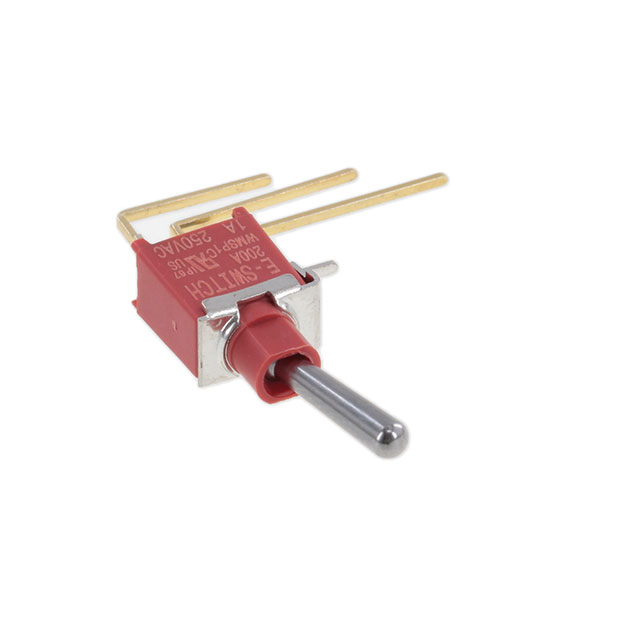

200AWMSP1T1A1M7QE
ActiveE-Switch
SWITCH TOGGLE SPDT 3A 120V
Deep-Dive with AI
Search across all available documentation for this part.
200AWMSP1T1A1M7QE
ActiveE-Switch
SWITCH TOGGLE SPDT 3A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 200AWMSP1T1A1M7QE | 200AWMSP1 Series |
|---|---|---|
| Actuator Length [x] | 10.16 mm | 5.08 - 10.16 mm |
| Actuator Material | Brass, Chrome Plated | Brass, Chrome Plated |
| Actuator Type | Standard Round | Standard Round |
| Bushing Thread | Unthreaded | Unthreaded |
| Circuit | SPDT | SPDT |
| Current Rating (Amps) | 3 A | 0.4 - 3 A |
| Electrical Life | 50000 Cycles | 50000 Cycles |
| Features | Epoxy Sealed Terminals | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Mounting Type | Through Hole, Vertical, Right Angle | Through Hole, Through Hole, Right Angle, Vertical, Right Angle |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Switch Function | On-On | On-On, On-Mom |
| Termination Style | PC Pin | PC Pin |
| Voltage Rating - AC | 120 V | 20 - 120 V |
| Voltage Rating - DC | 28 V | 20 - 28 V |
200AWMSP1 Series
SWITCH TOGGLE SPDT 3A 120V
| Part | Actuator Material | Bushing Thread | Illumination | Voltage Rating - AC | Termination Style | Features | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Ingress Protection | Circuit | Current Rating (Amps) | Actuator Type | Mounting Type | Electrical Life | Voltage Rating - DC | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch 200AWMSP1T2A1VS2QE | Brass, Chrome Plated | Unthreaded | Non-Illuminated | 120 V | PC Pin | Epoxy Sealed Terminals | -30 ░C | 85 °C | On-On | IP67 - Dust Tight, Waterproof | SPDT | 3 A | Standard Round | Through Hole | 50000 Cycles | 28 V | 6.1 mm |
E-Switch 200AWMSP1T2A1VS2RE | Brass, Chrome Plated | Unthreaded | Non-Illuminated | 20 V | PC Pin | Epoxy Sealed Terminals | -30 ░C | 85 °C | On-On | IP67 - Dust Tight, Waterproof | SPDT | 0.4 VA | Standard Round | Through Hole | 50000 Cycles | 20 V | 6.1 mm |
E-Switch 200AWMSP1T1A1M6RE | Brass, Chrome Plated | Unthreaded | Non-Illuminated | 20 V | PC Pin | Epoxy Sealed Terminals | -30 ░C | 85 °C | On-On | IP67 - Dust Tight, Waterproof | SPDT | 0.4 VA | Standard Round | Through Hole, Right Angle | 50000 Cycles | 20 V | 10.16 mm |
E-Switch 200AWMSP1T1A1M2RE | Brass, Chrome Plated | Unthreaded | Non-Illuminated | 20 V | PC Pin | Epoxy Sealed Terminals | -30 ░C | 85 °C | On-On | IP67 - Dust Tight, Waterproof | SPDT | 0.4 VA | Standard Round | Through Hole | 50000 Cycles | 20 V | 10.16 mm |
E-Switch 200AWMSP1T1A1M7QE | Brass, Chrome Plated | Unthreaded | Non-Illuminated | 120 V | PC Pin | Epoxy Sealed Terminals | -30 ░C | 85 °C | On-On | IP67 - Dust Tight, Waterproof | SPDT | 3 A | Standard Round | Right Angle, Through Hole, Vertical | 50000 Cycles | 28 V | 10.16 mm |
E-Switch 200AWMSP1T1A1VS2QE | Brass, Chrome Plated | Unthreaded | Non-Illuminated | 120 V | PC Pin | Epoxy Sealed Terminals | -30 ░C | 85 °C | On-On | IP67 - Dust Tight, Waterproof | SPDT | 3 A | Standard Round | Through Hole | 50000 Cycles | 28 V | 10.16 mm |
E-Switch 200AWMSP1T2A1M2RE | Brass, Chrome Plated | Unthreaded | Non-Illuminated | 20 V | PC Pin | Epoxy Sealed Terminals | -30 ░C | 85 °C | On-On | IP67 - Dust Tight, Waterproof | SPDT | 0.4 VA | Standard Round | Through Hole | 50000 Cycles | 20 V | 6.1 mm |
E-Switch 200AWMSP1T1A1M2QE | Brass, Chrome Plated | Unthreaded | Non-Illuminated | 120 V | PC Pin | Epoxy Sealed Terminals | -30 ░C | 85 °C | On-On | IP67 - Dust Tight, Waterproof | SPDT | 3 A | Standard Round | Through Hole | 50000 Cycles | 28 V | 10.16 mm |
E-Switch 200AWMSP1T3A1M6QE | Brass, Chrome Plated | Unthreaded | Non-Illuminated | 120 V | PC Pin | Epoxy Sealed Terminals | -30 ░C | 85 °C | On-On | IP67 - Dust Tight, Waterproof | SPDT | 3 A | Standard Round | Through Hole, Right Angle | 50000 Cycles | 28 V | 5.08 mm |
E-Switch 200AWMSP1T2A1M7QE | Brass, Chrome Plated | Unthreaded | Non-Illuminated | 120 V | PC Pin | Epoxy Sealed Terminals | -30 ░C | 85 °C | On-On | IP67 - Dust Tight, Waterproof | SPDT | 3 A | Standard Round | Right Angle, Through Hole, Vertical | 50000 Cycles | 28 V | 6.1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.20 | |
| 10 | $ 4.64 | |||
| 25 | $ 4.39 | |||
| 50 | $ 4.23 | |||
| 100 | $ 4.03 | |||
| 270 | $ 3.85 | |||
| 540 | $ 3.51 | |||
| 1080 | $ 3.33 | |||
Description
General part information
200AWMSP1 Series
Toggle Switch SPDT Through Hole, Right Angle, Vertical
