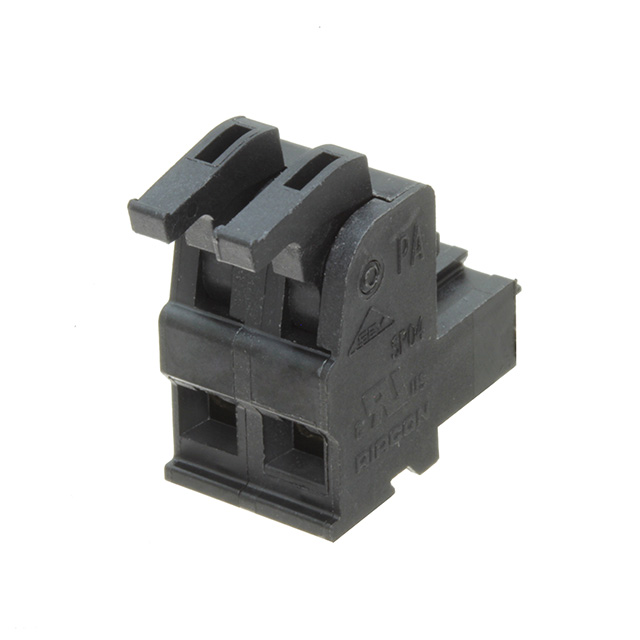

ASP0460222

Active

METZ CONNECT USA Inc.

SPRING CLAMP TERMINAL BLOCK, PLU

Deep-Dive with AI

Search across all available documentation for this part.

ASP0460222

Active

METZ CONNECT USA Inc.

SPRING CLAMP TERMINAL BLOCK, PLU

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ASP0460222	ASP046 Series

Color	Black	Black
Current - UL	10 A	10 A
Features	Lever Actuated, Retention Latches (Non-Wire Side)	Lever Actuated, Retention Latches (Non-Wire Side)
Housing Material	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6
Insulation Height	0.61 in	0.61 in
Insulation Height	15.49 mm	15.49 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	2	2 - 12
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.2 in	0.2 in
Pitch [x]	5.08 mm	5.08 mm
Positions Per Level	2	2 - 12
Termination Style	Screwless - Spring Cage, Tension Clamp	Screwless - Spring Cage, Tension Clamp
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	28 AWG	28 AWG
Wire Gauge or Range - AWG [Min]	16 AWG	16 AWG
Wire Gauge or Range - mm² [Max]	1 mm²	1 mm²
Wire Gauge or Range - mm² [Min]	0.08 mm²	0.08 mm²

ASP046 Series

SPRING CLAMP TERMINAL BLOCK, PLU

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Positions Per Level	Current - UL	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Number of Positions	Voltage - UL	Features	Number of Levels	Type	Material Flammability Rating	Housing Material	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Insulation Height	Insulation Height	Mounting Type	Color	Pitch [x]	Pitch [x]
METZ CONNECT USA Inc. ASP0460422	-40 °C	105 ░C	Screwless - Spring Cage, Tension Clamp	4	10 A	1 mm²	0.08 mm²	4	300 V	Lever Actuated, Retention Latches (Non-Wire Side)	1	Plug, Female Sockets	UL94 V-0	Polyamide (PA46), Nylon 4/6	28 AWG	16 AWG	0.61 in	15.49 mm	Free Hanging (In-Line)	Black	0.2 in	5.08 mm
METZ CONNECT USA Inc. ASP0460622	-40 °C	105 ░C	Screwless - Spring Cage, Tension Clamp	6	10 A	1 mm²	0.08 mm²	6	300 V	Lever Actuated, Retention Latches (Non-Wire Side)	1	Plug, Female Sockets	UL94 V-0	Polyamide (PA46), Nylon 4/6	28 AWG	16 AWG	0.61 in	15.49 mm	Free Hanging (In-Line)	Black	0.2 in	5.08 mm
METZ CONNECT USA Inc. ASP0461222	-40 °C	105 ░C	Screwless - Spring Cage, Tension Clamp	12	10 A	1 mm²	0.08 mm²	12	300 V	Lever Actuated, Retention Latches (Non-Wire Side)	1	Plug, Female Sockets	UL94 V-0	Polyamide (PA46), Nylon 4/6	28 AWG	16 AWG	0.61 in	15.49 mm	Free Hanging (In-Line)	Black	0.2 in	5.08 mm
METZ CONNECT USA Inc. ASP0461022	-40 °C	105 ░C	Screwless - Spring Cage, Tension Clamp	10	10 A	1 mm²	0.08 mm²	10	300 V	Lever Actuated, Retention Latches (Non-Wire Side)	1	Plug, Female Sockets	UL94 V-0	Polyamide (PA46), Nylon 4/6	28 AWG	16 AWG	0.61 in	15.49 mm	Free Hanging (In-Line)	Black	0.2 in	5.08 mm
METZ CONNECT USA Inc. ASP0461122	-40 °C	105 ░C	Screwless - Spring Cage, Tension Clamp	11	10 A	1 mm²	0.08 mm²	11	300 V	Lever Actuated, Retention Latches (Non-Wire Side)	1	Plug, Female Sockets	UL94 V-0	Polyamide (PA46), Nylon 4/6	28 AWG	16 AWG	0.61 in	15.49 mm	Free Hanging (In-Line)	Black	0.2 in	5.08 mm
METZ CONNECT USA Inc. ASP0460322	-40 °C	105 ░C	Screwless - Spring Cage, Tension Clamp	3	10 A	1 mm²	0.08 mm²		300 V	Lever Actuated, Retention Latches (Non-Wire Side)	1	Plug, Female Sockets	UL94 V-0	Polyamide (PA46), Nylon 4/6	28 AWG	16 AWG	0.61 in	15.49 mm	Free Hanging (In-Line)	Black	0.2 in	5.08 mm
METZ CONNECT USA Inc. ASP0460822	-40 °C	105 ░C	Screwless - Spring Cage, Tension Clamp	8	10 A	1 mm²	0.08 mm²	8	300 V	Lever Actuated, Retention Latches (Non-Wire Side)	1	Plug, Female Sockets	UL94 V-0	Polyamide (PA46), Nylon 4/6	28 AWG	16 AWG	0.61 in	15.49 mm	Free Hanging (In-Line)	Black	0.2 in	5.08 mm
METZ CONNECT USA Inc. ASP0460222	-40 °C	105 ░C	Screwless - Spring Cage, Tension Clamp	2	10 A	1 mm²	0.08 mm²	2	300 V	Lever Actuated, Retention Latches (Non-Wire Side)	1	Plug, Female Sockets	UL94 V-0	Polyamide (PA46), Nylon 4/6	28 AWG	16 AWG	0.61 in	15.49 mm	Free Hanging (In-Line)	Black	0.2 in	5.08 mm
METZ CONNECT USA Inc. ASP0460922	-40 °C	105 ░C	Screwless - Spring Cage, Tension Clamp	9	10 A	1 mm²	0.08 mm²	9	300 V	Lever Actuated, Retention Latches (Non-Wire Side)	1	Plug, Female Sockets	UL94 V-0	Polyamide (PA46), Nylon 4/6	28 AWG	16 AWG	0.61 in	15.49 mm	Free Hanging (In-Line)	Black	0.2 in	5.08 mm
METZ CONNECT USA Inc. ASP0460522	-40 °C	105 ░C	Screwless - Spring Cage, Tension Clamp	5	10 A	1 mm²	0.08 mm²		300 V	Lever Actuated, Retention Latches (Non-Wire Side)	1	Plug, Female Sockets	UL94 V-0	Polyamide (PA46), Nylon 4/6	28 AWG	16 AWG	0.61 in	15.49 mm	Free Hanging (In-Line)	Black	0.2 in	5.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.11
		10	$ 1.25
		25	$ 1.08
		50	$ 0.99
		100	$ 0.92
		250	$ 0.86
		500	$ 0.82
		1000	$ 0.80
		5000	$ 0.76

Description

General part information

ASP046 Series

2 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
