GMX-SMT2-N-101050

Active

Kycon, Inc.

FL/SMT M/JK LW/PROF RT<10P10C BL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet GMJXHT-MM-S-88

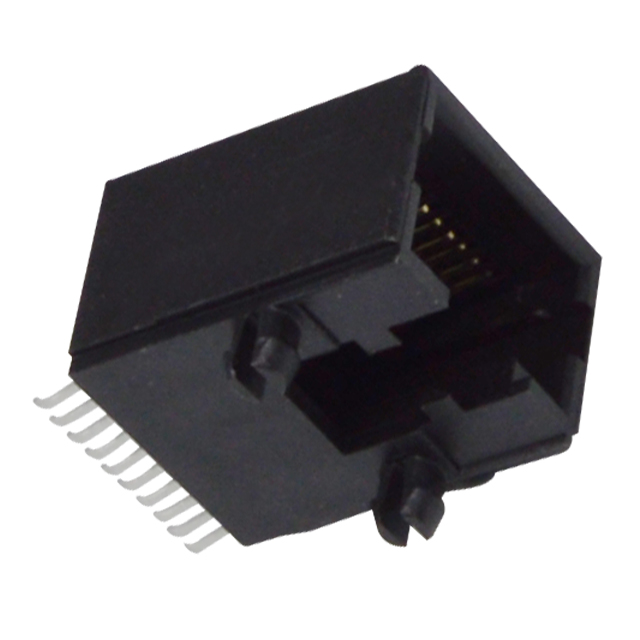

GMX-SMT2-N-101050

Active

Kycon, Inc.

FL/SMT M/JK LW/PROF RT<10P10C BL

Deep-Dive with AI

DocumentsDatasheet GMJXHT-MM-S-88

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GMX-SMT2-N-101050	GMX Series

Connector Type	Jack	Jack
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Finish Thickness	-	Flash
Contact Material	Phosphor Bronze	Phosphor Bronze
Features	-	Solder Retention, Board Guide
Housing Material	Thermoplastic	Thermoplastic, Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED	Does Not Contain LED
Mounting Type	Surface Mount	Surface Mount, Through Hole
Number of Ports	1	1
Number of Positions/Contacts	-	6p4c, 8p8c (RJ45, Ethernet), 6p6c (RJ11, RJ12, RJ14, RJ25), 4p4c
Number of Positions/Contacts [custom]	10	10
Number of Positions/Contacts [custom]	10	10
Number of Rows	1	1
Operating Temperature [Max]	85 °C	80 - 85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	90 °	90 °
Shielding	Unshielded	Unshielded, Shielded
Tab Direction	Down	Down
Termination	Solder	Solder

GMX Series

TRUE SMT M/JACK LOW/PROF NO POS

Part	Mounting Type	Features	Contact Material	Contact Finish Thickness	Orientation	Contact Finish	Termination	Number of Positions/Contacts	Number of Ports	Shielding	Connector Type	LED Color	Tab Direction	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
Kycon, Inc. GMX-SMT4-N-64	Surface Mount	Solder Retention	Phosphor Bronze	Flash	90 °	Gold	Solder	6p4c	1	Unshielded	Jack	Does Not Contain LED	Down	85 °C	-40 °C	Thermoplastic	1
Kycon, Inc. GMX-SMT4-N-88-50TR	Surface Mount	Solder Retention	Phosphor Bronze		90 °	Gold	Solder	8p8c (RJ45, Ethernet)	1	Unshielded	Jack	Does Not Contain LED	Down	85 °C	-40 °C	Thermoplastic	1	50 µin	1.27 µm
Kycon, Inc. GMXHT-N-64	Through Hole		Phosphor Bronze	Flash	90 °	Gold	Solder	6p4c	1	Unshielded	Jack	Does Not Contain LED	Down	80 C	-40 °C	Thermoplastic	1
Kycon, Inc. GMX-SMT2-S7-88-50	Surface Mount		Phosphor Bronze		90 °	Gold	Solder	8p8c (RJ45, Ethernet)	1	Shielded	Jack	Does Not Contain LED	Down	85 °C	-40 °C	Thermoplastic	1	50 µin	1.27 µm
Kycon, Inc. GMX-N-64	Through Hole		Phosphor Bronze	Flash	90 °	Gold	Solder	6p4c	1	Unshielded	Jack	Does Not Contain LED	Down	85 °C	-40 °C	Polybutylene Terephthalate (PBT)	1
Kycon, Inc. GMX-SMT4-N-88-TR	Surface Mount	Solder Retention	Phosphor Bronze	Flash	90 °	Gold	Solder	8p8c (RJ45, Ethernet)	1	Unshielded	Jack	Does Not Contain LED	Down	85 °C	-40 °C	Thermoplastic	1
Kycon, Inc. GMX-N-66	Through Hole		Phosphor Bronze	Flash	90 °	Gold	Solder	6p6c (RJ11, RJ12, RJ14, RJ25)	1	Unshielded	Jack	Does Not Contain LED	Down	80 C	-40 °C	Polybutylene Terephthalate (PBT)	1
Kycon, Inc. GMX-SMT2-S101050TR	Surface Mount		Phosphor Bronze		90 °	Gold	Solder		1	Shielded	Jack	Does Not Contain LED	Down	85 °C	-40 °C	Thermoplastic	1	50 µin	1.27 µm	10	10
Kycon, Inc. GMX-SMT2-N-88-50	Surface Mount		Phosphor Bronze		90 °	Gold	Solder	8p8c (RJ45, Ethernet)	1	Unshielded	Jack	Does Not Contain LED	Down	85 °C	-40 °C	Thermoplastic	1	50 µin	1.27 µm
Kycon, Inc. GMX-SMT4-N-64-50	Surface Mount	Solder Retention	Phosphor Bronze		90 °	Gold	Solder	6p4c	1	Unshielded	Jack	Does Not Contain LED	Down	85 °C	-40 °C	Thermoplastic	1	50 µin	1.27 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	360	$ 1.61
