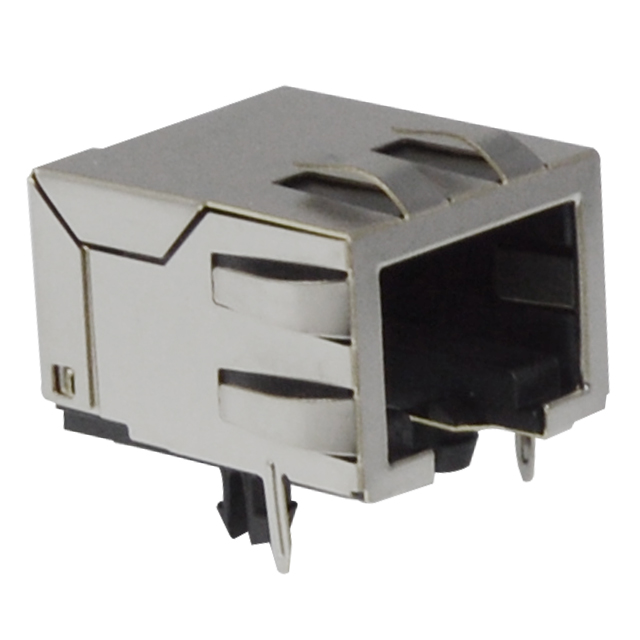

GMX-SMT2-S7-88-50

Active

Kycon, Inc.

FL/SMT M/JK L/PRF RT< 8P8C SNAP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGMJXHT-MM-S-88 Datasheet

GMX-SMT2-S7-88-50

Active

Kycon, Inc.

FL/SMT M/JK L/PRF RT< 8P8C SNAP

Deep-Dive with AI

DocumentsGMJXHT-MM-S-88 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GMX-SMT2-S7-88-50

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Surface Mount
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Shielded
Tab Direction	Down
Termination	Solder

GMX Series

Part	Shielding	Contact Material	Mounting Type	Termination	LED Color	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	Housing Material	Contact Finish	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Tab Direction	Number of Rows	Orientation	Number of Positions/Contacts	Features	Contact Finish Thickness	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
Kycon, Inc. GMX-SMT2-N-66-50TR	Unshielded	Phosphor Bronze	Surface Mount	Solder	Does Not Contain LED	50 µin	1.27 µm	1	Thermoplastic	Gold	Jack	85 °C	-40 °C	Down	1	90 °	6p6c (RJ11 RJ12 RJ14 RJ25)
Kycon, Inc. GMX-SMT4-N-66-50TR	Unshielded	Phosphor Bronze	Surface Mount	Solder	Does Not Contain LED	50 µin	1.27 µm	1	Thermoplastic	Gold	Jack	85 °C	-40 °C	Down	1	90 °	6p6c (RJ11 RJ12 RJ14 RJ25)	Solder Retention
Kycon, Inc. GMX-N-44-50	Unshielded	Phosphor Bronze	Through Hole	Solder	Does Not Contain LED	50 µin	1.27 µm	1	Polybutylene Terephthalate (PBT)	Gold	Jack	85 °C	-40 °C	Down	1	90 °	4p4c
Kycon, Inc. GMX-SMT4-N-88-TR	Unshielded	Phosphor Bronze	Surface Mount	Solder	Does Not Contain LED			1	Thermoplastic	Gold	Jack	85 °C	-40 °C	Down	1	90 °	8p8c (RJ45 Ethernet)	Solder Retention	Flash
Kycon, Inc. GMX-N-64	Unshielded	Phosphor Bronze	Through Hole	Solder	Does Not Contain LED			1	Polybutylene Terephthalate (PBT)	Gold	Jack	85 °C	-40 °C	Down	1	90 °	6p4c		Flash
Kycon, Inc. GMX-SMT2-N-1010	Unshielded	Phosphor Bronze	Surface Mount	Solder	Does Not Contain LED			1	Thermoplastic	Gold	Jack	85 °C	-40 °C	Down	1	90 °			Flash	10	10
Kycon, Inc. GMX-SMT4-N-64-50	Unshielded	Phosphor Bronze	Surface Mount	Solder	Does Not Contain LED	50 µin	1.27 µm	1	Thermoplastic	Gold	Jack	85 °C	-40 °C	Down	1	90 °	6p4c	Solder Retention
Kycon, Inc. GMX-SMT2-S-66	Shielded	Phosphor Bronze	Surface Mount	Solder	Does Not Contain LED			1	Thermoplastic	Gold	Jack	85 °C	-40 °C	Down	1	90 °	6p6c (RJ11 RJ12 RJ14 RJ25)		Flash
Kycon, Inc. GMX-SMT2-S2-1010TR	Shielded	Phosphor Bronze	Surface Mount	Solder	Does Not Contain LED			1	Thermoplastic	Gold	Jack	85 °C	-40 °C	Down	1	90 °			Flash	10	10
Kycon, Inc. GMX-SMT2-S6-88-50	Shielded	Phosphor Bronze	Surface Mount	Solder	Does Not Contain LED	50 µin	1.27 µm	1	Thermoplastic	Gold	Jack	85 °C	-40 °C	Down	1	90 °	8p8c (RJ45 Ethernet)	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.25
		10	$ 2.76
		25	$ 2.59
		50	$ 2.46
		120	$ 2.32
		360	$ 2.14
		600	$ 2.07
		1080	$ 1.98
		2520	$ 1.87
