031-4541

Active

AMPHENOL RF

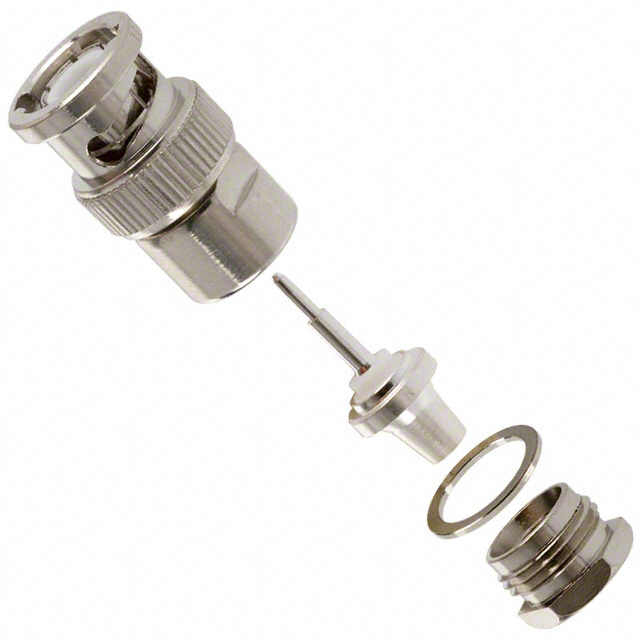

CONN BNC PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN BNC PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-4541	031-45 Series

Adapter Series	-	BNC to BNC, Dual
Adapter Type	-	Plug to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209
Center Contact Material	Brass	Brass
Center Contact Plating	Silver	Silver, Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder, Crimp	Solder, Crimp
Conversion Type	-	Same Series
Convert From (Adapter End)	-	BNC Plug, Male Pin
Convert To (Adapter End)	-	BNC Jack, Female Socket (2)
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Contact, 1 Clamp, 1 Connector	1 Contact, 1 Clamp, 1 Connector
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Clamp	Clamp
Style	-	T-Shape
Voltage Rating	500 V	500 V

CONN BNC PLUG STR 50 OHM CRIMP

Part	Fastening Type	Cable Group	Body Material	Includes	Frequency - Max [Max]	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Connector Style	Mating Cycles	Contact Termination	Voltage Rating	Center Contact Plating	Dielectric Material	Connector Type	Mounting Type	Body Finish	Insertion Loss	Shield Termination	Housing Color	Center Contact Material	Conversion Type	Style	Convert To (Adapter End)	Adapter Series	Convert From (Adapter End)	Adapter Type
AMPHENOL RF 031-4541	Bayonet Lock	140, 210, 59B, 62, 8263, 8279, 9209, Belden 8241, RG-59	Brass	1 Clamp, 1 Connector, 1 Contact	4 GHz	1	-65 ░C	165 °C	50 Ohms	BNC	500	Crimp, Solder	500 V	Silver	Polytetrafluoroethylene (PTFE)	Male Pin, Plug	Free Hanging (In-Line)	Nickel	0.2 dB	Clamp	Silver	Brass
AMPHENOL RF 031-4564	Bayonet Lock		Brass		4 GHz		-65 ░C	165 °C	50 Ohms					Gold	Polytetrafluoroethylene (PTFE)		Free Hanging (In-Line)	Nickel				Brass	Same Series	T-Shape	BNC Jack, Female Socket (2)	BNC to BNC, Dual	BNC Plug, Male Pin	Plug to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 17.08

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
