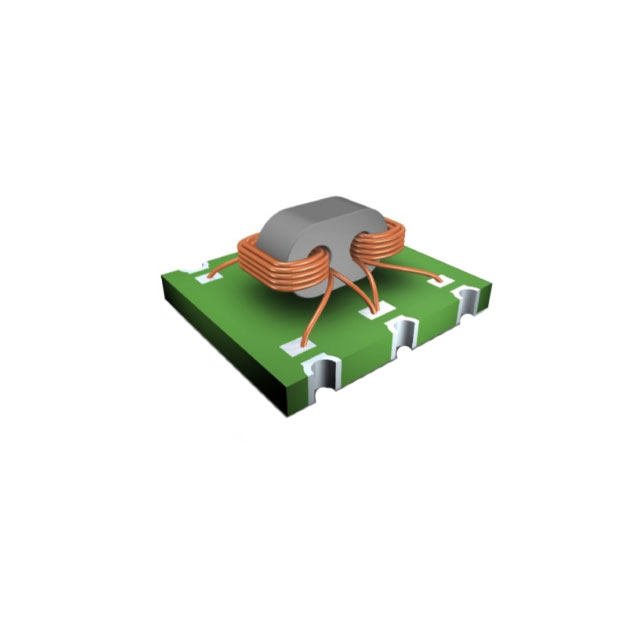

MACP-010381-C70880
ActiveMACOM Technology Solutions
COUPLER 7DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MACP-010381-C70880
ActiveMACOM Technology Solutions
COUPLER 7DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MACP-010381-C70880 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 7 dB |
| Frequency [Max] | 2.4 GHz |
| Frequency [Min] | 5 MHz |
| Isolation | 21 dB |
| Package / Case | 5-SMD, No Lead |
| Power - Max [Max] | 250 mW |
| Return Loss | 13 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.36 | |
| 10 | $ 2.55 | |||
| 25 | $ 2.31 | |||
| 100 | $ 2.01 | |||
| 250 | $ 1.85 | |||
| 500 | $ 1.75 | |||
| 1000 | $ 1.66 | |||
| Digi-Reel® | 1 | $ 3.36 | ||
| 10 | $ 2.55 | |||
| 25 | $ 2.31 | |||
| 100 | $ 2.01 | |||
| 250 | $ 1.85 | |||
| 500 | $ 1.75 | |||
| 1000 | $ 1.66 | |||
| Tape & Reel (TR) | 2000 | $ 1.40 | ||
| 6000 | $ 1.34 | |||
Description
General part information
MACP-010381 Series
RF Directional Coupler General Purpose 5MHz ~ 2.4GHz 7dB 250mW 5-SMD, No Lead
