17-111264

Active

Amphenol CONEC

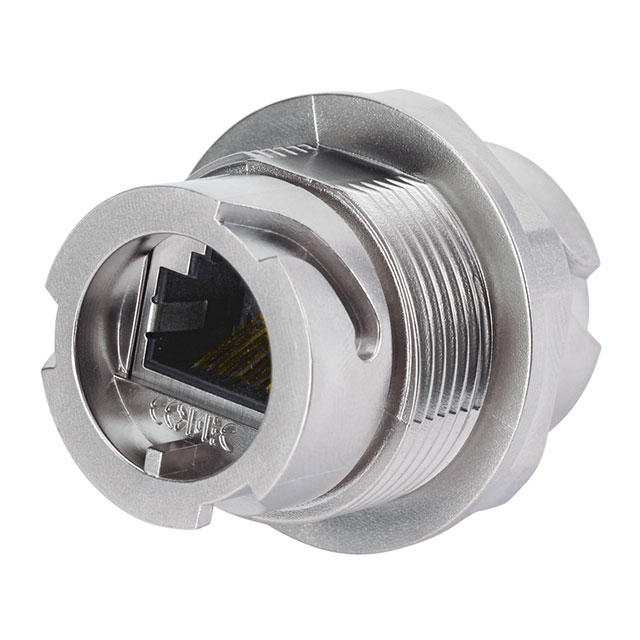

COUPLER RJ45 IP67

Search across all available documentation for this part.

Active

Amphenol CONEC

COUPLER RJ45 IP67

Technical Specifications

Parameters and characteristics for this part

Specification	17-111264

Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Convert From (Adapter End)	Jack, 8p8c (RJ45)
Convert To (Adapter End)	8p8c (RJ45), Jack
Features	Circular Bayonet Coupling
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Flange
Mounting Type	Bulkhead, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Ratings	Cat5e
Shell Material, Finish	Nickel Plated, Copper Alloy
Shielding	Unshielded
Type	Coupler

Part	Housing Material	Termination	Features	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Number of Rows	Tab Direction	Orientation	Ingress Protection	Shielding	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	LED Color	Connector Type	Mounting Type	Contact Finish	Number of Positions/Contacts	Convert From (Adapter End)	Convert To (Adapter End)	Mounting Feature	Type	Shell Material, Finish
Amphenol CONEC 17-111204	Zinc Die Cast Nickel Plated	Terminal Block	Circular Bayonet Coupling Cover Mounting Hardware Potted	85 °C	-40 °C	Cat5e	1	User Selectable	Straight	IP67 - Dust Tight Waterproof	Shielded	Phosphor Bronze	50 µin	1.27 µm	1	Does Not Contain LED	Jack	Flange Panel Mount	Gold	8p8c (RJ45 Ethernet)
Amphenol CONEC 17-111244	Zinc Die Cast Nickel Plated	PC Board Solder	Circular Bayonet Coupling Cover Mounting Hardware Potted	85 °C	-40 °C	Cat5e	1	User Selectable	Straight	IP67 - Dust Tight Waterproof	Shielded	Phosphor Bronze	50 µin	1.27 µm	1	Does Not Contain LED	Jack	Flange Panel Mount	Gold	8p8c (RJ45 Ethernet)
Amphenol CONEC 17-111264	Polybutylene Terephthalate (PBT) Glass Filled		Circular Bayonet Coupling	85 °C	-40 °C	Cat5e				IP67 - Dust Tight Waterproof	Unshielded	Phosphor Bronze	50 µin	1.27 µm				Bulkhead Panel Mount	Gold		Jack 8p8c (RJ45)	8p8c (RJ45) Jack	Flange	Coupler	Copper Alloy Nickel Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 18.72

General part information

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat5e Unshielded
