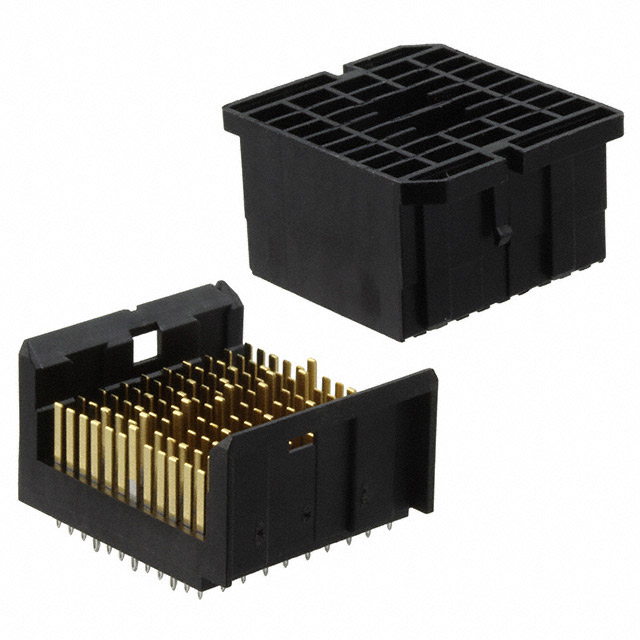

10117992-101LF

Active

Amphenol ICC (FCI)

CONN HDR HIGH SPEED 120POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HDR HIGH SPEED 120POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10117992-101LF

Color	Black
Connector Style	High Speed
Connector Type	Header, Male Pins
Connector Usage	Daughtercard
Contact Finish	Gold
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	10
Number of Positions	120
Number of Positions Loaded	All
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.055 in
Pitch [x]	1.4 mm
Termination	Press-Fit

Part	Number of Columns	Connector Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Color	Material Flammability Rating	Connector Style	Contact Finish	Number of Positions Loaded	Termination	Pitch [x]	Pitch [x]	Mounting Type	Connector Usage
Amphenol ICC (FCI) 10117992-101LF	10	Header Male Pins	120	85 °C	-55 °C	Black	UL94 V-0	High Speed	Gold	All	Press-Fit	0.055 in	1.4 mm	Through Hole	Daughtercard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	348	$ 14.71

General part information

120 Connector Header, Male Pins Through Hole Black High Speed
